Diamond

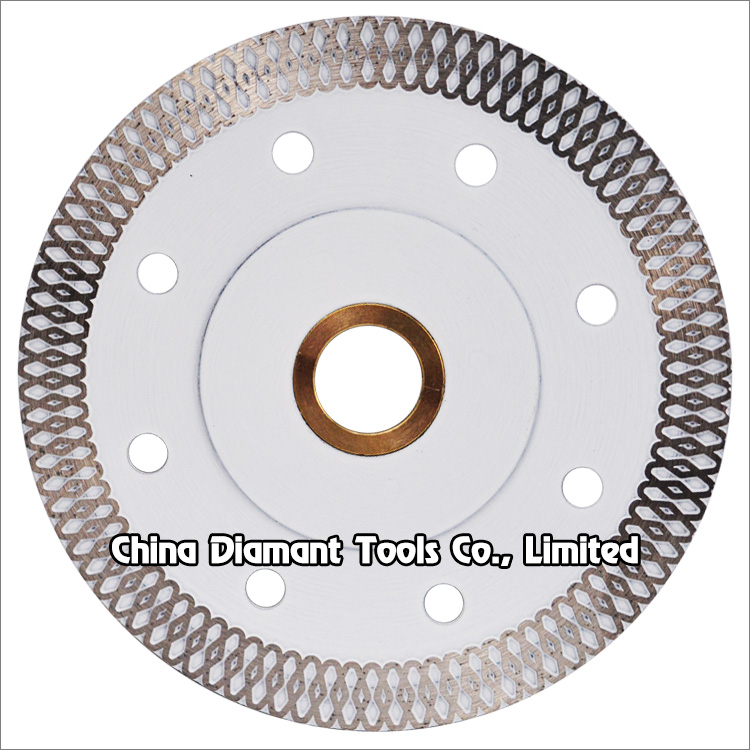

Dry Cutters - Hot Press Sintered, Super Thin Continuous & Fish Scale Rim
|
Super thin hot press
sintered diamond saw blades with
with continuous & fish scale rim segments for cutting ceramic,
porcelain, tile, masonry, marble, and soft stone, fast cutting
speed with less chips.
Diameter:
4"(105mm)-9"(230mm), segment
height: 10mm.
Steel Core Type:
thicker of central part.
Processing: hot-press sintered.
Dry or wet use, water coolant is benefit for longer
cutting life.
Usually used
on: angle grinders, table saws, handheld saw machines.
|
|
 |
|
Code No. |
Diameter |
Hole
(mm) |
Segment Thickness |
Segment Height |
Processing |
|
CD-CCSB-05-105 |
105mm(4") |
20/22.23/25.4 |
1.4mm |
10mm |
Hot press sintered |
|
CD-CCSB-05-115 |
115mm(4-1/2") |
20/22.23/25.4 |
1.4mm |
10mm |
|
CD-CCSB-05-125 |
125mm(5") |
20/22.23/25.4 |
1.4mm |
10mm |
|
CD-CCSB-05-150 |
150mm(6") |
20/22.23/25.4 |
1.8mm |
10mm |
|
CD-CCSB-05-180 |
180mm(7") |
20/22.23/25.4 |
1.8mm |
10mm |
|
CD-CCSB-05-200 |
200mm(8") |
20/22.23/25.4 |
1.8mm |
10mm |
|
CD-CCSB-05-230 |
230mm(9") |
20/22.23/25.4 |
2.0mm |
10mm |
The about specifications & photos is for reference, other specification
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
