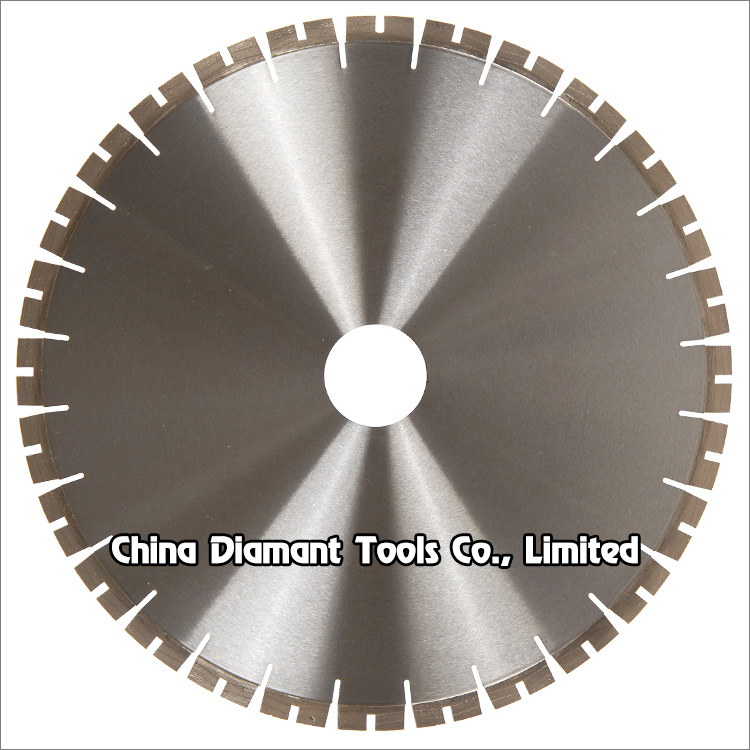

Diamond Saw Blades for Granite
Slab Edge Cutting - >> Shape Taper with U slot Segments
|
Diamond
saw blades with >> shape taper
with U slot segments for cutting slab edge of granite, sandstone,
various hard stones with quartz, fast and smooth cutting
with long life.
Better cutting speed compared to normal segmented saw
blades by taper & U slot shape segments, also benefit
for fast coolant.
The blades are mostly used on manual edge cutting
machines, bridge cutting
machines or table cutting machines.
Segment height: 20mm.
Silent steel core is available.
Welding Type: Silver welded by high frequency welding
machine.
Wet use only with sufficient water. |
|
 |
|
Code
No. |
Diameter
(mm/Inch) |
Bore Size
(mm) |
Segment Size
(mm) |
Segment No.
(pcs/set) |
Steel Blank Type |
Welding Method |
|
CD-SBEG-05-300 |
300mm(10") |
50/60 |
41x3.6/3.2/3.0x15 |
21 |
Normal
or
Silent |
Silver Welded |
|
CD-SBEG-05-350 |
350mm(14") |
50/60 |
41x3.6/3.2/3.0x15 |
24 |
|
CD-SBEG-05-400 |
400mm(16") |
50/60 |
41x4.0/3.7/3.4x15 |
28 |
|
CD-SBEG-05-500 |
500mm(20") |
50/60 |
41x4.3/4.0/3.7x15 |
36 |
|
CD-SBEG-05-600 |
600mm(24") |
50/60 |
41x5.0/4.7/4.4x15 |
42 |
|
CD-SBEG-05-700 |
700mm(28") |
50/60 |
41x5.5/5.2/4.9x15 |
50 |
|
CD-SBEG-05-800 |
800mm(32") |
50/60 |
41x6.0/5.7/5.4x15 |
57 |
The about specification & photo is for reference, other specification
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
