Diamond Segments for Marble Slab Edge Cutting



 - Flat Shape with 2 "U" Slot



Code: CD-DSM-04

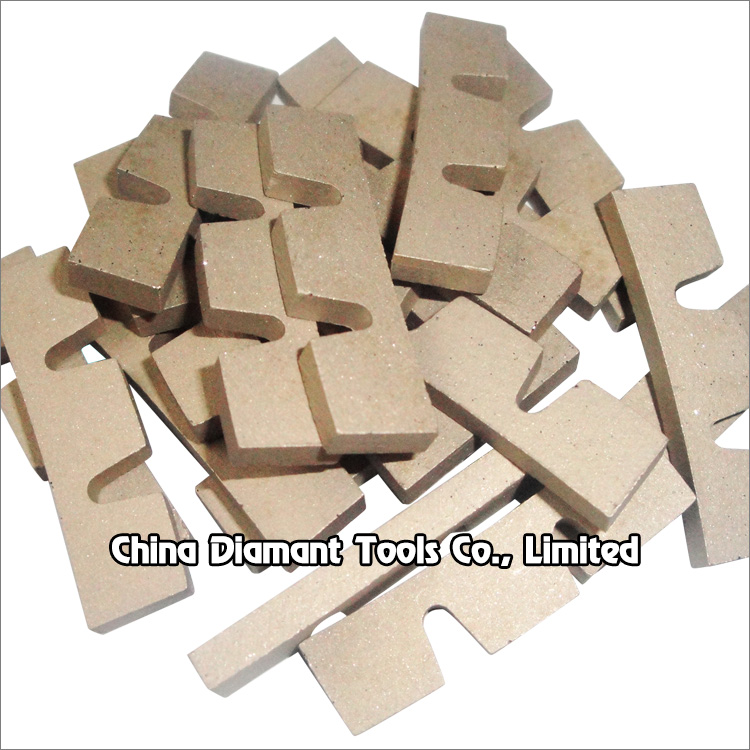

Diamond segment with 2 "U" slot shape of 250-800mm circular saw blades for slab edge cutting of marble, limestone, slate, various soft stone without quartz.



Wet use only.



Welding method: Silver welding by high frequency welding machine.



Diameter

(mm/Inch)

Segment Size (mm)

Segment No.

(pcs/set)

Length Width Height

250mm(10")

40

2.6/2.8

10

18

300mm(12")

40

3.0/3.2

10

21

350mm(14")

40

3.2/3.4

10

25

400mm(16")

40

3.6

10

28

450mm(18") 40

4.0

10

32

500mm(20")

40

4.2

10

36

550mm(22")

40

4.4

10

38

600mm(24")

40

4.6

10

42

700mm(28")

40

5.0

10

50

725mm(30")

40

5.5

10

50

800mm(32")

40

5.2

10

46



The above specification & photos is only for reference, other specification or design may be available as per customer's demand.
