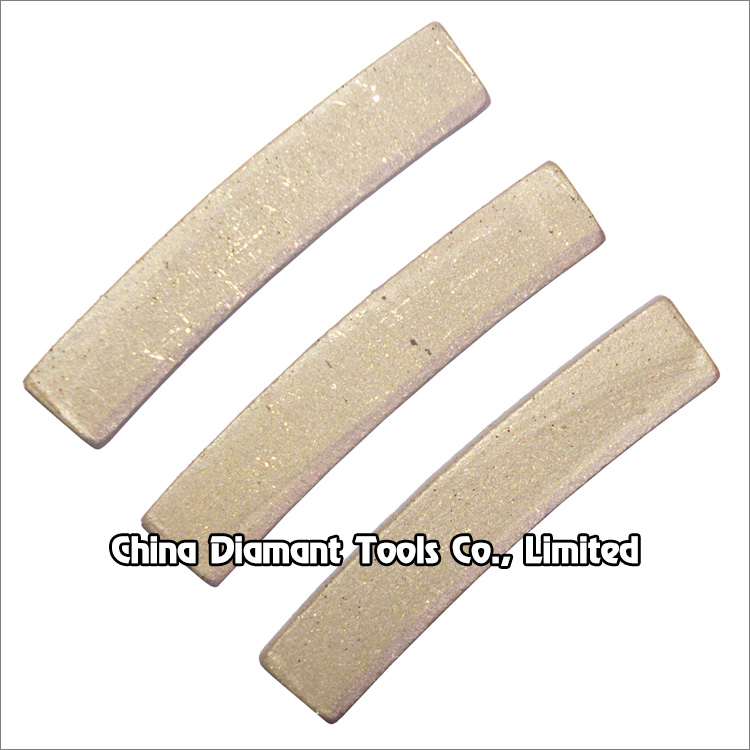

Diamond Segments for Marble Slab Edge Cutting



 - Fan Shape (Cutting side length is longer than bottom length)



Code: CD-DSM-02



Diamond segment with fan shape of 300-600mm circular saw blades for slab edge cutting of marble, limestone, slate, various soft stone without quartz.



Wet use only.



Welding method: Silver welding by high frequency welding machine.



Diameter

(mm/Inch)

Segment Size (mm)

Segment No.

(pcs/set)

Length Width Height

300mm(12")

44.7/42.3

3.0

8

21

350mm(14")

44.7/41.7

3.2

8

25

400mm(16")

42.9/41.2

3.6

8

28

450mm(18") 43.0/41.6

4.0

8

32

500mm(20")

43.0/41.6

4.2

8

36

600mm(24")

44.3/43.0

4.6

8

42



The above specification & photos is only for reference, other specification or design may be available as per customer's demand.
