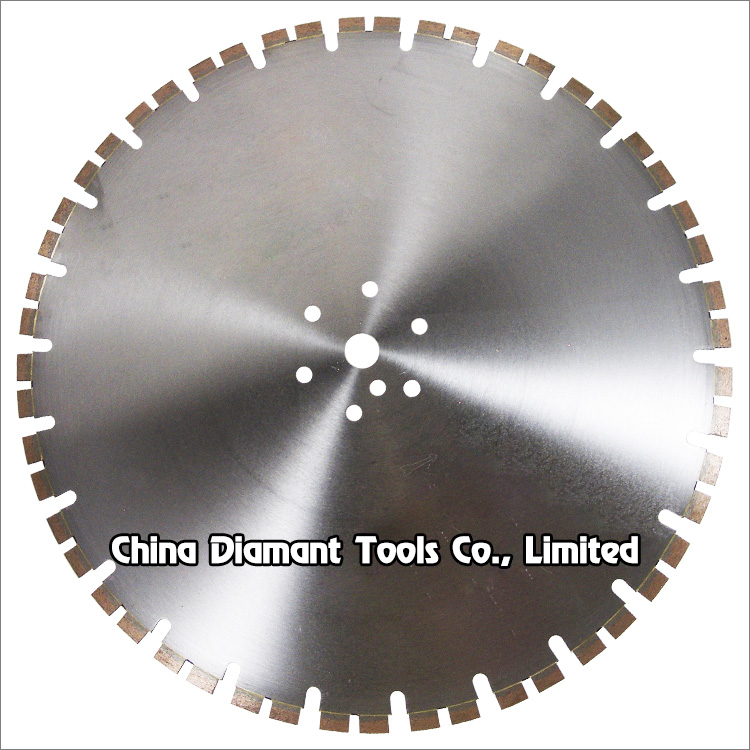

Diamond Saw Blades for Concrete Wall Floor Cutting - Double Short Length Flat Segments



Laser or silver welded diamond saw blades with double short length flat segments used to cut openings in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition, fast cutting less fatigue smooth operation and long life.



Diameter: 450mm-1200mm.



Segments height: 10-15mm.



Widely used on the projects of Civil engineering, structural steel, waterproofing, architectural renovation works, etc. to cut various materials such as steel bar, concrete, reinforced concrete, large dimension pipes or tubes, and other building materials.



Running on electric tracking machine, air or hydraulic saws, saw power from 10HP to 60HP.



Dry or wet use.



Various bore sizes, bond types are available upon wall saw type, RPM, power, materials.







Code No.

Diameter

Segment Size

(L x W x H mm)

Segment No. Welding Method Bore Size Steel Core Thickness
CD-SBW-04-01

450mm(18")

20x4.6x10/12mm

30*2

Laser welded

25.4mm

30.5mm

35mm

50mm

60mm

80mm

or

As per demand

3.5mm

CD-SBW-04-02

500mm(20")

20x4.6x10/12mm

32*2
CD-SBW-04-03

600mm(24")

20x4.6x10/12mm

35*2
CD-SBW-04-04 625mm(25")

20x4.6x10/12mm

36*2
CD-SBW-04-05

650mm(26")

20x4.6x10/12mm

38*2
CD-SBW-04-06

700mm(28")

20x4.6x10/12mm

40*2
CD-SBW-04-07

750mm(30")

20x4.6x10/12mm

42*2
CD-SBW-04-08

800mm(32")

20x4.6x10/12mm

46*2
CD-SBW-04-09

900mm(36")

20x4.6x10/12mm

52*2
CD-SBW-04-10

1000mm(40")

20x4.6x10/12/15mm

58*2
CD-SBW-04-11

1200mm(48")

20x4.6x10/12/15mm

68*2





Different specifications of bores:





A

B

C

D





The about specifications & photos is for reference, other specification may be available as per customer's demand.





Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
