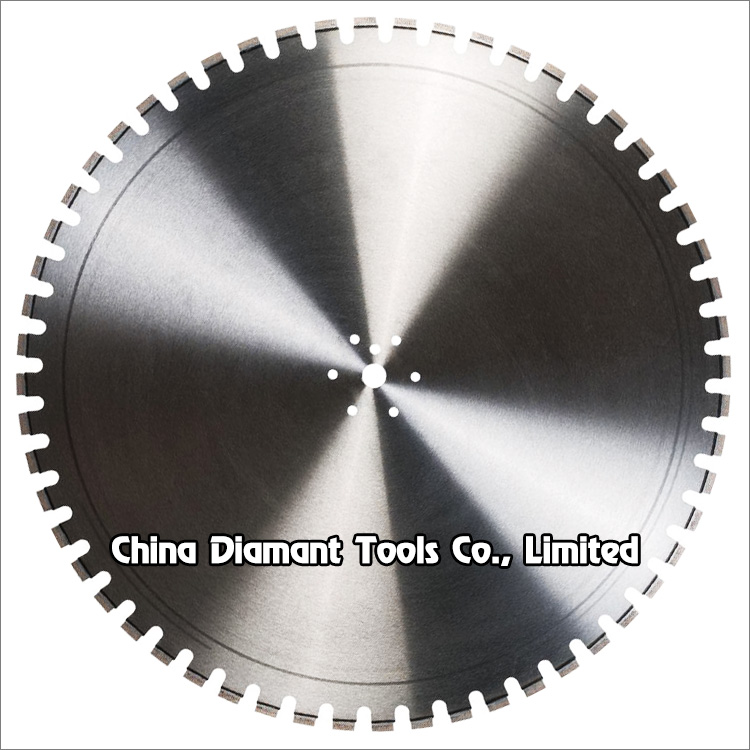

Diamond Saw Blades for Concrete Wall Floor Cutting - 20mm Length Flat Segments



Laser welded diamond saw blades with 20mm length flat segments used to cut openings in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition, fast cutting less fatigue smooth operation and long life.



Diameter: 450mm-1200mm.



Segments height: 10-15mm.



Widely used on the projects of Civil engineering, structural steel, waterproofing, architectural renovation works, etc. to cut various materials such as steel bar, concrete, reinforced concrete, large dimension pipes or tubes, and other building materials.



Running on electric tracking machine, air or hydraulic saws, saw power from 10HP to 60HP.



Dry or wet use.



Various bore sizes, bond types are available upon wall saw type, RPM, power, materials.







Code No.

Diameter

Segment Size

(L x W x H mm)

Segment No. Bore Size Steel Core Thickness Welding Method
CD-SBW-03-01

600mm(24")

20x4.8x10/12/15mm

64

25.4mm

30.5mm

35mm

50mm

60mm

80mm

or

As per demand

3.5mm

Laser welded

CD-SBW-03-02

650mm(26")

20x4.8x10/12/15mm

68
CD-SBW-03-03

700mm(28")

20x4.8x10/12/15mm

72
CD-SBW-03-04

750mm(30")

20x4.8x10/12/15mm

74
CD-SBW-03-05

800mm(32")

20x4.8x10/12/15mm

80
CD-SBW-03-06

825mm(33")

20x4.8x10/12/15mm

82
CD-SBW-03-07

900mm(36")

20x4.8x10/12/15mm

90
CD-SBW-03-08

1000mm(40")

20x4.8x10/12/15mm

100
CD-SBW-03-09

1200mm(48")

20x4.8x10/12/15mm

120





Different specifications of bores:





A

B

C

D





The about specifications & photos is for reference, other specification may be available as per customer's demand.





Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
