Diamond Tuck Point Saw Blades

Diamond Tuck Point Saw Blades - Normal Flat Segments

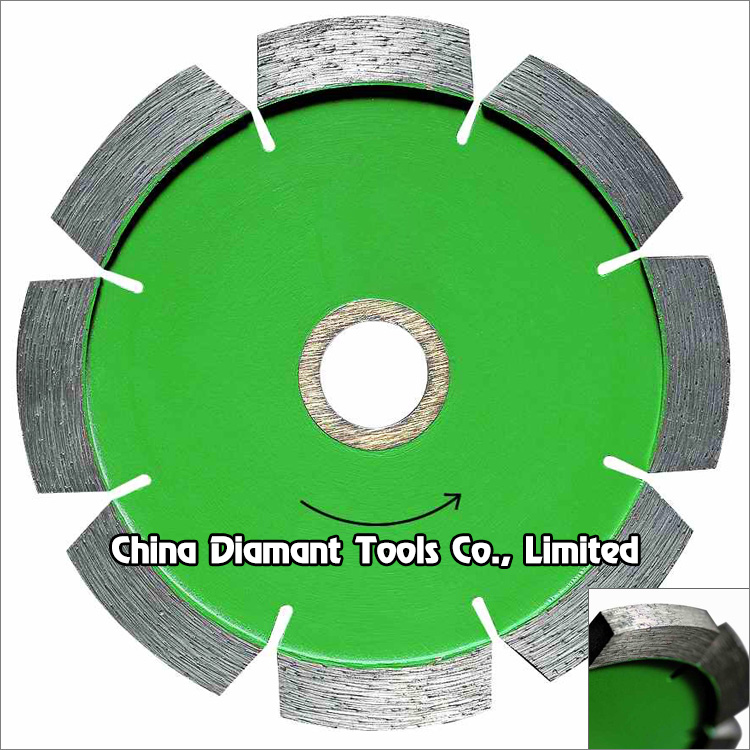

Diamond tuck point saw blade is composed up of heavy-duty steel core and has powder metal/diamond dust segments, providing dependable performance for fast cutting speeds and good blade life.

They are thicker than diamond saw blades due to the purpose they serve. They are suitable for making gaps, mortar and concrete removal, and they allow you to prep stone, granite, marble, concrete brick, block and pavers for new joints and brick cleaning.

Our tuck point blade with thicker normal flat segments employ a high grade and concentration of diamond to ensure longer life and better cutting speed.

Hot press sintered, or laser welded.

Dry or wet use.

Used with angle grinders, tuck pointers.

Code No.	Diameter	Segment Width (mm)	Segment Height (mm)	Bore	Producing Tech.
CD-DTPB-01-01	105mm(4")	6.4	10	15.88mm(5/8") 22.23mm(7/8")	Hot press sintered or Laser welded
CD-DTPB-01-02	115mm(4.5")	6.4	10
CD-DTPB-01-03	125mm(5")	6.4	10
CD-DTPB-01-04	150mm(6")	6.4	10
CD-DTPB-01-05	180mm(7")	6.4	10
CD-DTPB-01-06	200mm(8")	6.4	10
CD-DTPB-01-07	230mm(9")	6.4	10

The about specifications & photos is for reference, other specification may be available as per demand.

Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
