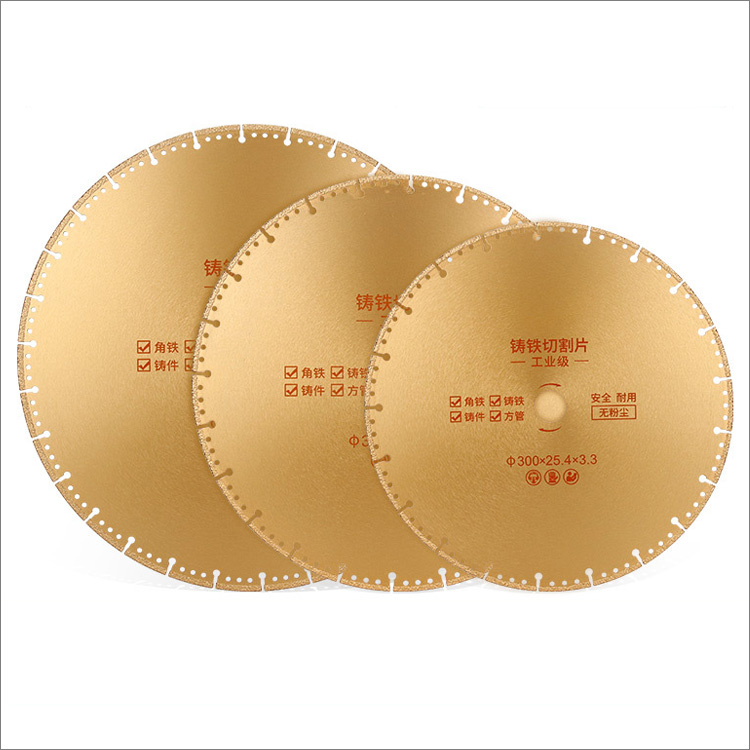

All Purpose Diamond Saw Blades for Steel Metal Cutting - Vacuum Brazed



This type diamond multifunction saw blade is designed to cut through wide range tough material such as stone, bricks, blocks, cast iron, steel sections, ferrous and non-ferrous metal, drywall, reinforced concrete, fire door, plastic, PVC, etc., which is suitable for DIY, fire fighter, Rescue Team, Demolition Contractors.


Aggressive diamond grains are firmly vacuum brazed onto the edge of steel core to create unbreakable and extremely heat resistant segments, which lead to extremely fast working with higher efficiency and longer life. The diamond is not easy to fall off, little sparks during cutting, it is very safe and no pollution.


Various diamond grain sizes and specification of the blades are available upon request.



Dry cutting, no water required, the saw blade is not easily deformed and the diameter will not decrease, but if water or other coolant is benefit for longer life .



Long lifetime for cutting metal materials, this brazing tools' lifetime is around 150 times than other ordinary grinding disc.



Not suitable for cutting: aluminum alloy, copper, wood.







Code No.

Diameter

Bore Size

Segment Thickness

Segment Height

CD-DSB-VB-01-100

100mm(4")

20/22.23/25.4mm

2.3mm

8mm

CD-DSB-VB-01-115

115mm(4-1/2")

20/22.23/25.4mm

2.3mm

8mm

CD-DSB-VB-01-125

125mm(5")

20/22.23/25.4mm

2.3mm

8mm

CD-DSB-VB-01-150

150mm(6")

20/22.23/25.4mm

2.7mm

8mm

CD-DSB-VB-01-180

180mm(7")

20/22.23/25.4mm

2.9mm

8mm

CD-DSB-VB-01-200

200mm(8")

20/22.23/25.4mm

2.9mm

8mm

CD-DSB-VB-01-230

230mm(9")

20/22.23/25.4mm

3.1mm

8mm

CD-DSB-VB-01-250

250mm(10")

25.4/32/50/60mm

3.3mm

8mm

CD-DSB-VB-01-300 300mm(12") 25.4/32/50/60mm 3.3mm 8mm
CD-DSB-VB-01-350 350mm(14") 25.4/32/50/60mm 3.5mm 8mm
CD-DSB-VB-01-400 400mm(16") 25.4/32/50/60mm 3.5/3.8mm 8mm
CD-DSB-VB-01-500

500mm(20")

25.4/32/50/60mm

4.3mm

8mm





The about specification & photo is for reference, other specification may be available as per demand.





Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
