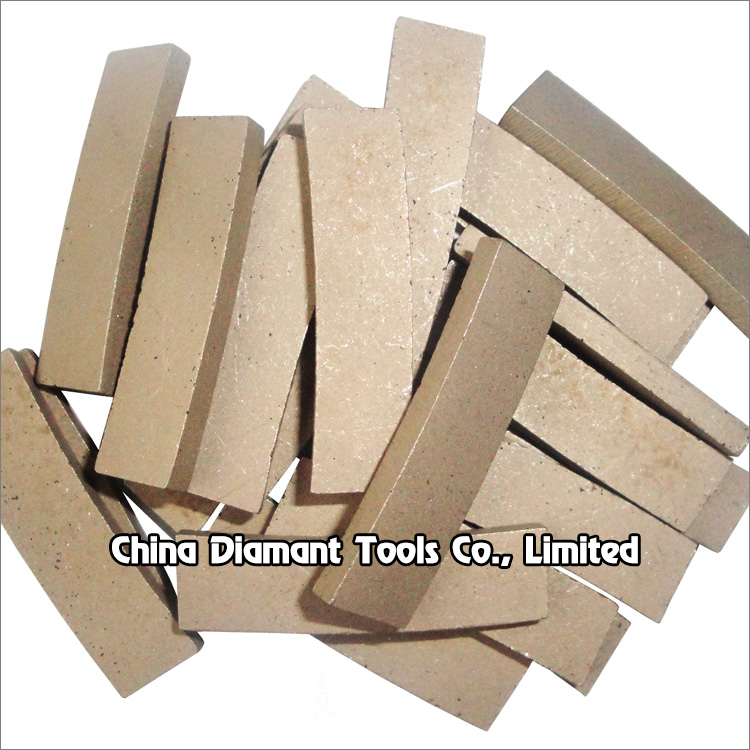

Diamond Segments of Circular Saw Blade for Marble Cutting - Normal Flat Shape
|
Diamond
segment with normal flat shape of 250-800mm circular saw blades for
slab edge cutting of marble, limestone, slate, various soft stone without quartz.
Normal flat means speciation is simple and "no grooves/slot or special shapes".
The most demanding sizes of marble segments are for
14”/350mm and 16”/400mm of circular saw blades to cut 2-5cm thickness marble
and soft stone slabs or
strips.
Wet use only with sufficient water.
Welding method: Silver welding
by high frequency welding machine.
|
|
 |
|
Code No. |
Diameter
(mm/Inch) |
Segment Size (mm) |
Segment No.
(pcs/set) |
|
Length |
Width |
Height |
|
CD-DSMS-01-250 |
250mm(10") |
40 |
2.6/2.8 |
8/10 |
18 |
|
CD-DSMS-01-300 |
300mm(12") |
40 |
3.0/3.2 |
8/10 |
21 |
|
CD-DSMS-01-350 |
350mm(14") |
40 |
3.2/3.4 |
8/10 |
24/25 |
|
CD-DSMS-01-400 |
400mm(16") |
40 |
3.6 |
8/10 |
28 |
|
CD-DSMS-01-450 |
450mm(18") |
40 |
4.0 |
8/10 |
32 |
|
CD-DSMS-01-500 |
500mm(20") |
40 |
4.2 |
8/10 |
36 |
|
CD-DSMS-01-550 |
550mm(22") |
40 |
4.4 |
8/10 |
38 |
|
CD-DSMS-01-600 |
600mm(24") |
40 |
4.6 |
8/10 |
42 |
|
CD-DSMS-01-625 |
625mm(25") |
40 |
4.6 |
8/10 |
42 |
|
CD-DSMS-01-700 |
700mm(28") |
40 |
5.0 |
8/10 |
50 |
|
CD-DSMS-01-725 |
725mm(29") |
40 |
5.5 |
8/10 |
50 |
|
CD-DSMS-01-800 |
800mm(32") |
40 |
5.2 |
8/10 |
46 |
The about specifications & photos is for reference, other specification
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
