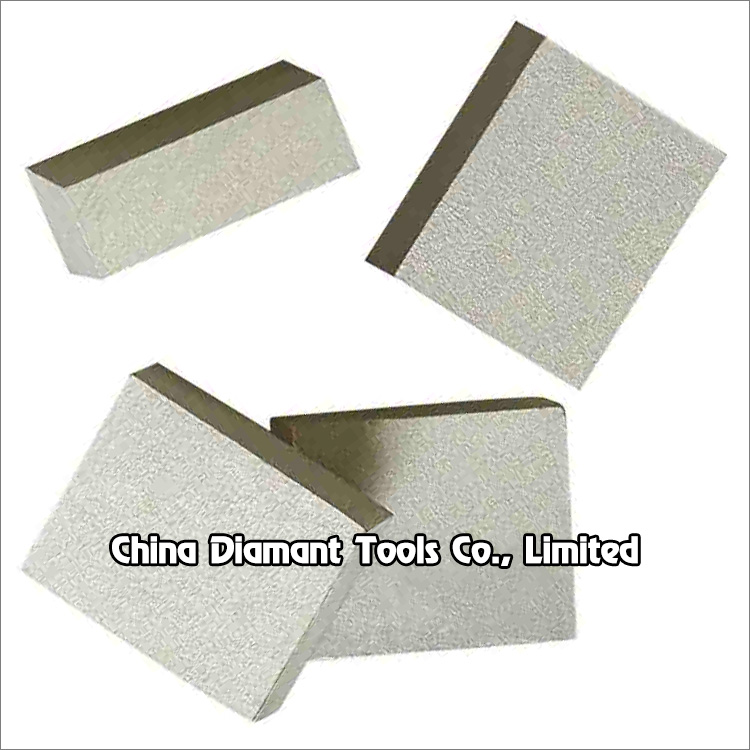

Diamond Segments of Multi-blade for Granite Block Cutting
Normal taper shape with sandwich or multi-layer structure diamond
segments which are mainly used on multi-blades for cutting granite rough
blocks into thin slabs.
Characterized by high efficiency, no
need grinding, smoothness of slab,
and low energy consumption.
Blade diameter mostly in 1200mm for Italian/European Machines and
1600/940mm or 2200-600mm and 2500-800mm for Chinese machines.
|
 |
 |
 |
|
high frequency welding |
Sandwich structure |
Multi-layer structure |
|
single size blades |
|
|
Code No. |
|
|
|
|
|
CD-DSGBM-1-1-1000 |
|
|
|
|
|
CD-DSGBM-1-1-1200 |
|
|
|
|
CD-DSGBM-1-1-1600 |
|
|
|
5-60pcs same diameter diamond circular saw blades per machine is
suitable for 4 column machine, such as 1200mm Multi-Blades, this
is very popular in granite block cutting field of Europe area.
Sandwich or multi-layer structure of the segments are both available for
this type blades.
|
|
two-size blades |
|
|
Code No. |
|
|
|
|
|
CD-DSGBM-1-2-1000 |
|
|
|
|
|
CD-DSGBM-1-2-1600 |
|
|
|
There are
10-30pcs two different diameter circular saw blades on the
machine, i.e. each size is 5-15pcs of same quantity, and the
segment size is also same, usually the blade diameters are
1000mm & 1600mm, this cutting technic
is original from China and which is very popular in granite block cutting field
of China, East Asia and Middle-East area.
The multi-layer
structure of the segments is suitable for this cutting technic. |
|
multi-size blades |
|
|
Code No. |
|
|
|
|
|
CD-DSGBM-1-3-530 |
|
|
|
(This blade No. &
segment size is only for reference,
actually there are 6-15pcs different assembles.)
|
|
CD-DSGBM-1-3-740 |
|
|
|
|
CD-DSGBM-1-3-950 |
950 |
24×8.1/7.5×13/15 |
88 |
|
CD-DSGBM-1-3-1200 |
1200 |
24×8.1/7.5×13/15 |
92 |
|
CD-DSGBM-1-3-1400 |
1400 |
24×8.1/7.5×13/15 |
96 |
|
CD-DSGBM-1-3-1600 |
1600 |
24×8.1/7.5×13/15 |
108 |
We call it super
thin multi-blades, there are 6-15pcs
different diameter circular saw blades on this type machines, i.e.
the size of each blade is different, and all the segments
size is same, this cutting technic
is original from China for cutting expensive blocks to reduce the waste
of material, it is very popular in granite block cutting field
of China, and some in India & Middle-east market.
In China people
are usually using 3.0 or 3.5mm thickness steel blanks since
skilled workers are available, so the segment size are
usually 4.0 or 4.5mm thickness, however for the market of
other countries, the blade and segment thickness is more.
The multi-layer
structure of the segments is suitable for this cutting technic. |
The about specifications & photos is for reference, other specification
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
