900mm-3500mm
Diamond Segments for Granite Block/Mineral Cutting

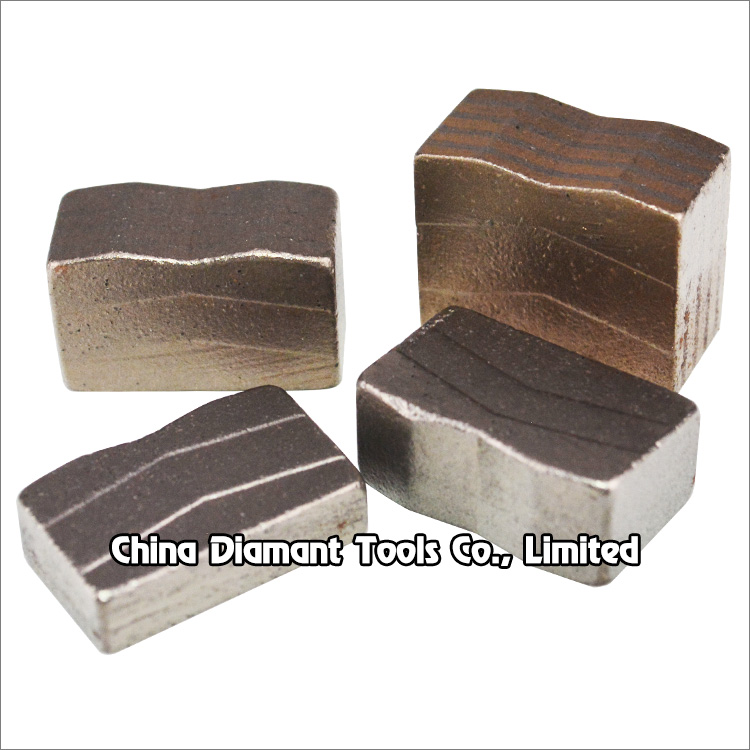

W Top "<<" Step Taper Shape with Multi-layer Structure
Diamond
Segment W top "<<" step taper shape with mulit-layer structure of 900-3500mm circular saw blades for
block or mineral cutting of
granite, sandstone, various hard stone with quartz.
Suitable for bridge cutting machines, single arm cutting machines.
Wet use only with sufficient water,
coolant material put into water is benefit for faster
cutting.
Welding method: silver/copper welding
by high frequency welding machine.
|
|
|
|
|
Code No. |
Diameter
(mm) |
Segment Dimension
(L × W × H) mm |
Segment No. |
Length |
Width (Taper Type) |
Height |
CD-DSGB-06-900
|
900 |
24 |
7.0/6.2 |
15/20 |
64 |
CD-DSGB-06-1000 |
1000 |
24 |
7.0/6.2 |
15/20 |
70 |
CD-DSGB-06-1100 |
1100 |
24 |
7.4/6.6 |
15/20 |
74 |
CD-DSGB-06-1200 |
1200 |
24 |
7.6/7.0 |
15/20 |
80 |
CD-DSGB-06-1350 |
1350 |
24 |
8.4/7.6 |
15/20 |
88 |
CD-DSGB-06-1400 |
1400 |
24 |
8.4/7.6 |
15/20 |
96 |
CD-DSGB-06-1600 |
1600 |
24 |
9.2/8.4 |
15/20 |
104/108 |
CD-DSGB-06-1700 |
1700 |
24 |
9.2/8.4 |
15/20 |
112 |
CD-DSGB-06-1800 |
1800 |
24 |
10.0/9.2 |
15/20 |
120 |
CD-DSGB-06-2000 |
2000 |
24 |
10.6/9.6 |
15/20 |
128 |
CD-DSGB-06-2200 |
2200 |
24 |
11.0/10.0 |
15/20 |
132/136 |
CD-DSGB-06-2500 |
2500 |
24/30 |
12.5/11.5 |
15/20/25/30 |
140 |
CD-DSGB-06-2700 |
2700 |
24/30 |
12.5/11.5 |
15/20/25/30 |
140 |
CD-DSGB-06-3000 |
3000 |
24/30 |
12.5/11.5 |
15/20/25/30 |
160 |
CD-DSGB-06-3500 |
3500 |
24/30 |
13.5/12.5 |
15/20/25/30 |
180 |
The about specifications & photos is for reference, other specification
may be available as per demand.
Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
