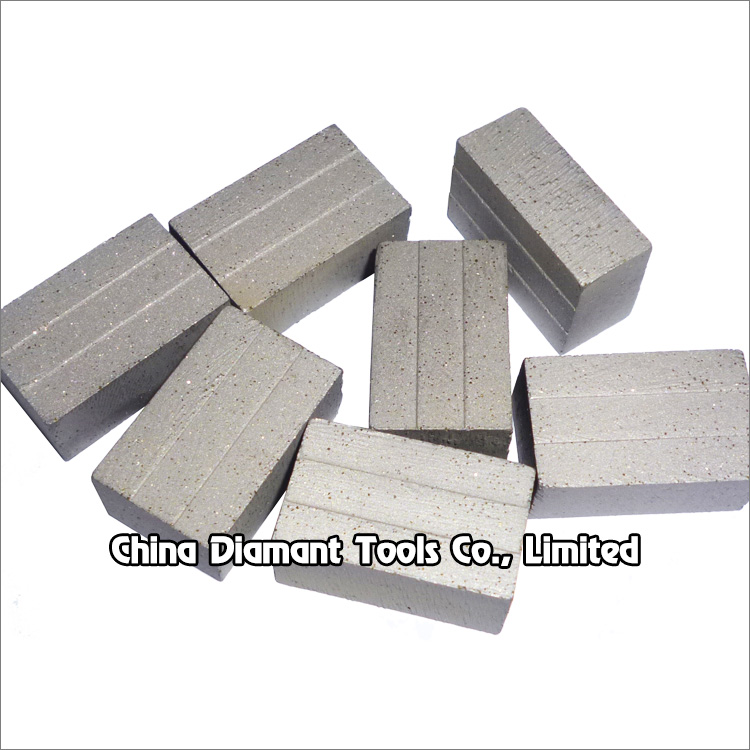

900mm-3500mm Diamond Segments for Granite Block Cutting



"||"  Step Taper Shape with Sandwich or Multi-layer Structure



Diamond Segment "||" step taper shape with sandwich/mulit-layer structure of 900-3500mm circular saw blades for block cutting of granite, sandstone, various hard stone with quartz.



Suitable for bridge cutting machines, single arm cutting machines.



Wet use only with sufficient water, coolant material put into water is benefit for faster cutting.



Welding method: silver/copper welding by high frequency welding machine.







high frequency welding Sandwich structure Multi-layer structure





Code No.

Diameter

(mm)

Segment Dimension (L W H) mm

Segment No.

Length

Width (Taper Type)

Height

CD-DSGB-04-900

900

24

7.0/6.4

12/15/20

64

CD-DSGB-04-1000

1000

24

7.5/7.0/6.5

12/15/20

70

CD-DSGB-04-1100

1100

24

7.5/7.0/6.5

12/15/20

74

CD-DSGB-04-1200

1200

24

7.8/7.4/7.0

12/15/20

80

CD-DSGB-04-1350

1350

24

8.4/7.9/7.4

12/15/20

88

CD-DSGB-04-1400

1400

24

8.4/7.9/7.4

12/15/20

96

CD-DSGB-04-1600

1600

24

9.4/8.9/8.4

12/15/20

104/108

CD-DSGB-04-1700

1700

24

9.4/8.9/8.4

12/15/20

112

CD-DSGB-04-1800

1800

24

10/9.4/8.8

12/15/20

120

CD-DSGB-04-2000

2000

24

10.6/10.0/9.6

12/15/20

128

CD-DSGB-04-2200

2200

24

11.5/11/10.5

12/15/20

132/136

CD-DSGB-04-2500

2500

24/30

12/11.5/11

15/20

140

12.5/12/11.5/11

30

CD-DSGB-04-2700

2700

24/30

12/11.5/11

15/20/25

140

12.5/12/11.5/11

30

CD-DSGB-04-3000

3000

24/30

12.5/12/11.5

20/25

160

13/12.5/12/11.5

30

CD-DSGB-04-3500

3500

24/30

13/12.5/12

20/25

180

13.5/13/12.5/12

30





The about specifications & photos is for reference, other specification may be available as per demand.





Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
