250mm-800mm Diamond Saw Blade for Edge Cutting of Marble Slabs

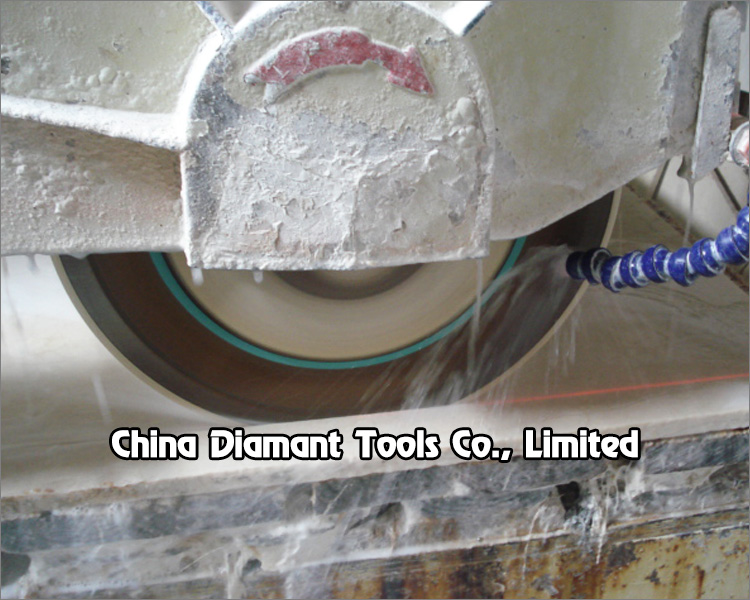

Diamond saw blades for slab edge cutting of marble, limestone, slate, various soft stones without quartz, cutting slabs to tiles or as per order request, used on bridge cutting machines, manual handling cutting machines or table saw machines.



The most demanding sizes of edge cutting saw blade for marble is 14”/350mm and 16”/400mm to cut 2-5cm thickness marble slabs or strips.





The following are the different designs of marble saw blades:





CD-SBEM-01

Normal Segments

CD-SBEM-02

Fan Shape Segments

CD-SBEM-03

Fishhook Steel Body





Diameter

(mm/Inch)

Hole

(mm)

Segment Height

(mm)

Segment No.

(pcs/set)

Steel Blank Type Welding Method

250mm(10")

50/60 7/8/10

18

Normal

&

Silent

Silver Welded

300mm(12")

50/60 7/8/10

21

350mm(14")

50/60 7/8/10

24/25

400mm(16")

50/60 8/10

28

450mm(18") 50/60 8/10

32

500mm(20")

50/60 8/10

36

550mm(22")

50/60 8/10

38

600mm(24")

50/60 8/10

42

625mm(25")

50/60 8/10 44

700mm(28")

50/60 8/10/12

50

725mm(28")

50/60 8/10/12 50

750mm(30")

50/60 8/10/12

52

800mm(32")

50/60 8/10/12

46





Silent & None Silent Saw Blades is Available!



Welding method: Silver welding by high frequency welding machine.



Wet use only, Fast & Easy cutting, long life, very less or no chips.



The above specifications and photos is for reference, other specifications may be available as per customer's demand.









There are two types of saw blanks for choice, normal (non-silent) saw blank and silent(sandwich, less noise). When cutting on stone, normal saw blade sounds much louder, silent blade is sandwich structure with a copper layer in between, this helps decreasing the noise and people call it silent cut. The silent steel blank is mostly with U slot while the normal saw blade is with Key Slot, it is a regular design.
