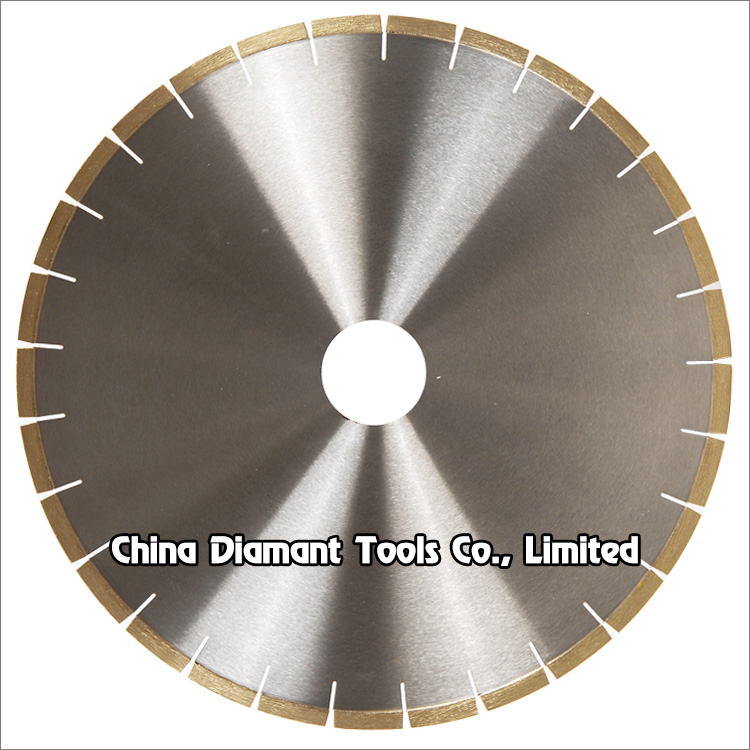

Diamond Saw Blades with normal 8mm or 10mm height segments for slab edge cutting of marble, limestone, slate, various soft stones without quartz, cutting slabs to tiles or as per order request.

The blades are mostly used on manual edge cutting machines, bridge cutting machines or table cutting machines.

Segment height: 8mm, 10mm.

Silent steel core is available.

Silver welded by high frequency welding machine.

Wet use only with sufficient water.

Code No.

Diameter

(mm/Inch)

Bore Size

(mm)

Segment Height

(mm)

Segment No.

(pcs/set)

Steel Blank Type

Welding Method

CD-SBEM-01-250

250mm(10")

50/60

8/10

18

Normal

or

Silent

Silver Welded

CD-SBEM-01-300

300mm(12")

50/60

8/10

21

CD-SBEM-01-350

350mm(14")

50/60

8/10

24/25

CD-SBEM-01-400

400mm(16")

50/60

8/10

28/29

CD-SBEM-01-450

450mm(18")

50/60

8/10

32

CD-SBEM-01-500

500mm(20")

50/60

8/10

36

CD-SBEM-01-550

550mm(22")

50/60

8/10

38

CD-SBEM-01-600

600mm(24")

50/60

8/10

42

CD-SBEM-01-625

625mm(25")

50/60

8/10

44

CD-SBEM-01-700

700mm(28")

50/60

8/10

50

CD-SBEM-01-725

725mm(28")

50/60

8/10

50

CD-SBEM-01-750

750mm(30")

50/60

8/10

52

CD-SBEM-01-800

800mm(32")

50/60

8/10

46
