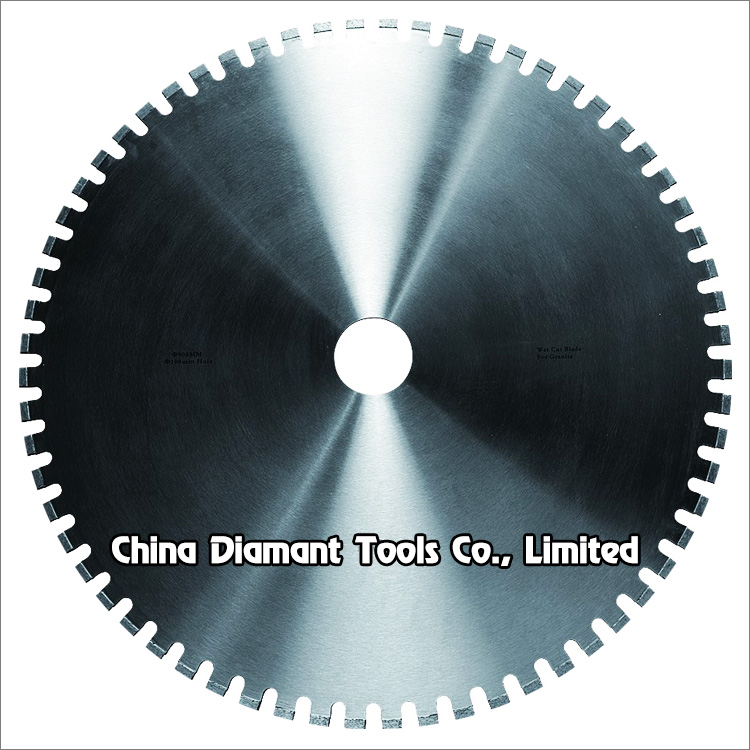

900mm-2000mm Diamond Saw Blades for Block Cutting of Marble Limestone Soft Stone



Diamond segmented circular saw blades of diameter 900-2000mm for block cutting of marble, limestone, slate, various soft stone without quartz.



Suitable for bridge block cutter, gantry block cutting machine or single arm stone cutting machines, cutting marble blocks to slabs or tiles (stripes).



Welding method: silver welded by high frequency welding machine.



Wet use only with sufficient water, Fast & Smooth cutting, long life, high ratio of performance to price.





Code No.

Diameter

(mm)

Segment Dimension

(L × W × H)

Segment No.

Segment

Structure

CD-DSB-MBC-01-0900

900

24x6.5x8/10/12

64

Sandwich

CD-DSB-MBC-01-1000

1000

24x7.0x8/10/12

70

CD-DSB-MBC-01-1200

1200

24x7.5x8/10/12

80

CD-DSB-MBC-01-1300

1300

24x8.0x8/10/12

88

CD-DSB-MBC-01-1350

1350

24x8.0x8/10/12

88

CD-DSB-MBC-01-1400

1400

24x8.5x8/10/12

96

CD-DSB-MBC-01-1600

1600

24x9.0x8/10/12

104/108

CD-DSB-MBC-01-1800

1800

24x9.5x10/12

120

CD-DSB-MBC-01-2000

2000

24x10.5x10/12

128





The following are the different shapes design of diamond segments:





CD-DSMB-01

Box Shape, 24xmm Length



CD-DSMB-02

Taper Shape, 24xmm Length



CD-DSMB-03

40mm Length





CD-DSMB-04

W Top (Easy opening)

CD-DSMB-05

Matrix Design







The above specifications & photo is for reference, other Specifications may be available as per demand.









Remarks:


Marble block saw blade refers to diamond saw blades used for marble block cutting purpose. They are in bigger diameters from 900mm to 2000mm mostly, in which the most popular blade diameter are 900mm, 1200mm and 1600mm for cutting tiles from 30x30cm to 60x60cm, which is more required from the market.

Diamond segments for marble block cutting are mostly in yellow color which is the main color of copper based metal bond, some are silver color based on cobalt bond, and there is soft to harder bond for cutting different hardness of marbles. It also works for limestone, travertine and other soft stones. As per steel blank design, there is 40mm length segments and 24xmm length segments for choice. Marble block cutter segments mostly cuts for long, so the segment height is generally in 8mm and 10mm, and some customers prefer 13mm height for single blade block cutter.

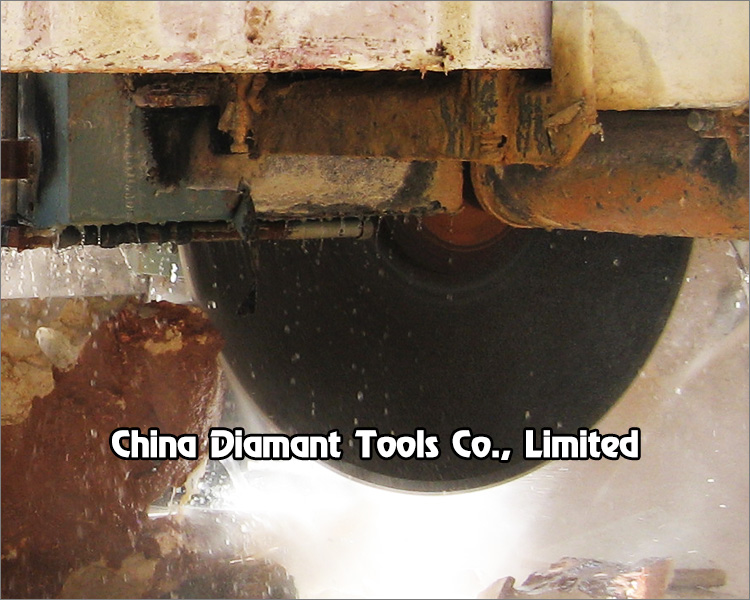

Diamond blade for marble block cutting is mostly used on bridge block cutter with a horizontal blade to cut the bottom of slabs or strips from the marble block. Most of the marble block cutter is equipped with a horizontal block cutter at diameter of 350mm, 400mm or 500mm.
