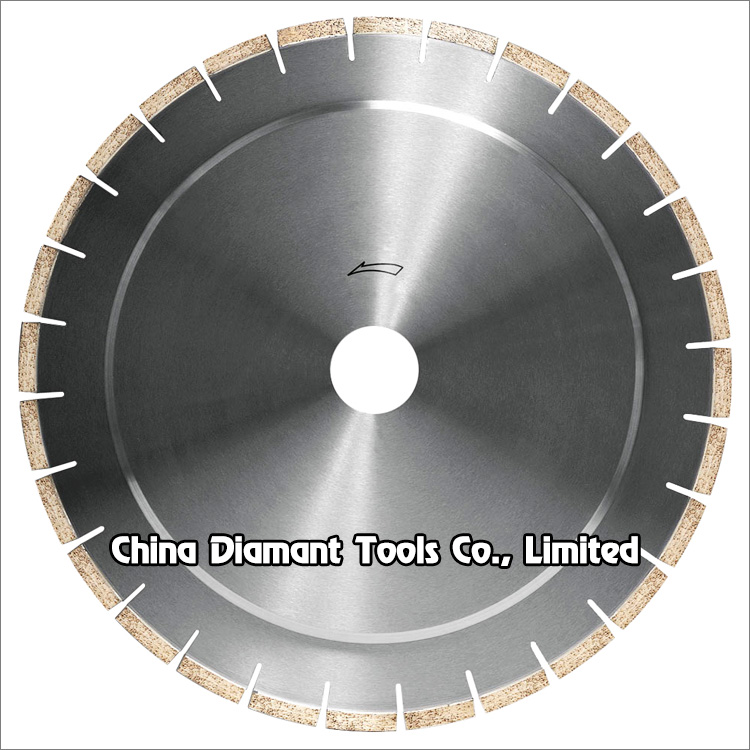

Horizontal Cutting Diamond Saw Blades
Diamond horizontal cutting blade is usually used on granite multi-saw
blades cutting machines or marble block
cutting machines, it cut the slabs edge from the block
bottom after the vertical cutting of slabs.
Welding method: Silver welded by high frequency welding machine.
Wet use only, fast & smooth
cutting, long life.
Diamond
horizontal cutting saw blade for Granite
|
Code No. |
Diameter
(mm) |
Segment Size
(L x W x H, mm) |
Segment No.
(pcs) |
Core Thickness
(mm) |
Bore Size
(mm) |
|
CD-SBHG-01-350 |
350 |
40x5x10 |
21 |
3.0/7.5 |
50/60 |
|
CD-SBHG-01-400 |
400 |
40x5x10 |
24 |
3.0/7.5 |
50/60 |
|
CD-SBHG-01-450 |
450 |
40x5.5x10 |
26 |
3.0/7.5 |
50/60 |
|
CD-SBHG-01-500 |
500 |
40x5.5x10 |
30 |
3.0/7.5 |
50/60 |
|
CD-SBHG-01-600 |
600 |
40x6x10 |
32 |
4.0 |
50/60 |
|
CD-SBHG-01-650 |
650 |
40x6x10 |
40 |
4.5 |
50/60 |
|
|
|
Diamond
horizontal cutting saw blade for marble, basalt, travertine,
limestone
|
Code No. |
Diameter
(mm) |
Segment Size
(L x W x H, mm) |
Segment No.
(pcs) |
Core Thickness
(mm) |
Bore Size
(mm) |
|
CD-SBHM-01 |
350 |
40x5x8 |
21 |
3.0/7.5 |
50/60 |
|
CD-SBHM-02 |
400 |
40x5x8 |
24 |
3.0/7.5 |
50/60 |
|
CD-SBHM-03 |
450 |
40x5.5x8 |
26 |
3.0/7.5 |
50/60 |
|
CD-SBHM-04 |
500 |
40x5.5x8 |
30 |
3.0/7.5 |
50/60 |
|
CD-SBHM-05 |
600 |
40x6x8 |
32 |
4.0 |
50/60 |
|
CD-SBHM-06 |
650 |
40x6x8 |
40 |
4.5 |
50/60 |
|
|
 |
The above specifications and photos is for reference, other specification
may be available as per customer's demand.
|
|
|
