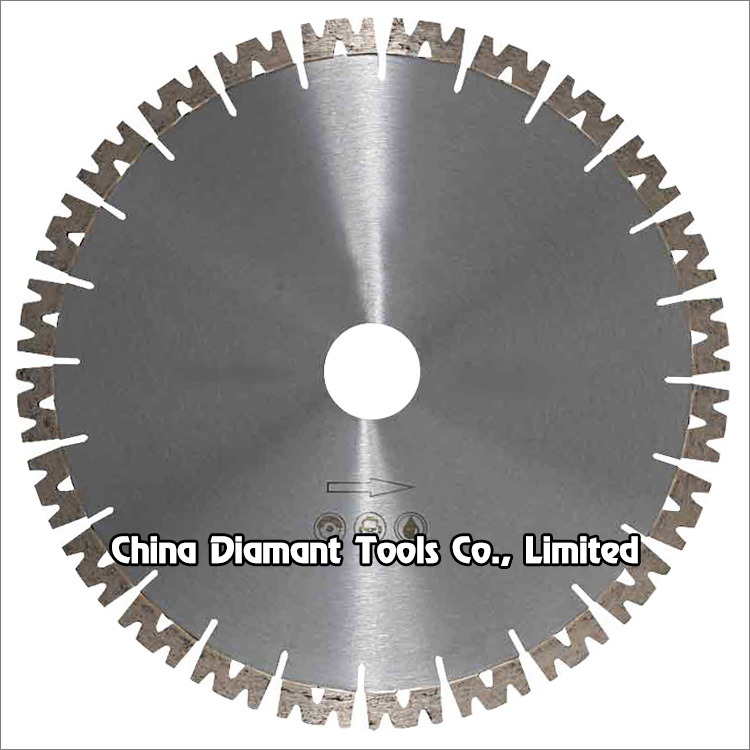

Diamond Saw Blades for Granite
Slab Edge Cutting - W Shape Segments
|
Diamond
saw blades with W shape
segments for cutting slab edge of granite, sandstone,
various hard stones with quartz, fast and smooth cutting
with long life.
Faster cutting speed compared to normal segmented saw
blades 2 V slot segments, also 3 slots is much benefit
for fast coolant.
The blades are mostly used on manual edge cutting
machines, bridge cutting
machines or table cutting machines.
Segment height: 20mm.
Silent steel core is available.
Welding Type: Silver welded by high frequency welding
machine.
Wet use only with sufficient water. |
|
 |
|
Code
No. |
Diameter
(mm/Inch) |
Bore Size
(mm) |
Segment Height
(mm) |
Segment No.
(pcs/set) |
Steel Blank Type |
Welding Method |
|
CD-SBEG-09-01 |
300mm(12") |
50/60 |
20 |
21 |
Normal
or
Silent |
Silver Welded |
|
CD-SBEG-09-02 |
350mm(14") |
50/60 |
20 |
24 |
|
CD-SBEG-09-03 |
400mm(16") |
50/60 |
20 |
28 |
|
CD-SBEG-09-04 |
450mm(18") |
50/60 |
20 |
32 |
|
CD-SBEG-09-05 |
500mm(20") |
50/60 |
20 |
36 |
|
CD-SBEG-09-06 |
550mm(22") |
50/60 |
20 |
38 |
|
CD-SBEG-09-07 |
600mm(24") |
50/60 |
20 |
42 |
The about specification & photo is for reference, other specification
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
