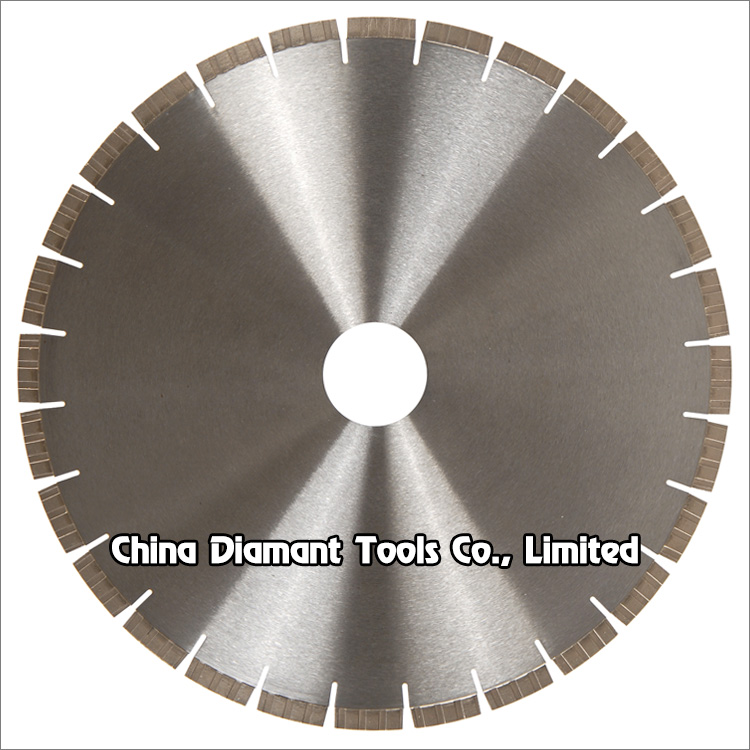

Diamond Saw Blades for Granite Slab Edge Cutting - Straight Groove Segments



Diamond saw blades with straight groove segments for cutting slab edge of granite, sandstone, various hard stones with quartz, fast and smooth cutting with long life.



Better cutting speed compared to normal segmented saw blades, water groove on the segments is better for fast coolant and chip removal.



The blades are mostly used on manual edge cutting machines, bridge cutting machines or table cutting machines.



Segment height: 10mm, 12mm, 15mm.



Silent steel core is available.



Welding Type: Silver welded by high frequency welding machine.



Wet use only with sufficient water.







Code No.

Diameter

(mm/Inch)

Bore Size

(mm)

Segment Height

(mm)

Segment No.

(pcs/set)

Steel Blank Type Welding Method

CD-SBEG-02-01

250mm(10")

50/60 10/12/15

18

Normal

or

Silent

Silver Welded

CD-SBEG-02-02

300mm(12")

50/60 10/12/15

21

CD-SBEG-02-03

350mm(14")

50/60 10/12/15

24

CD-SBEG-02-04

400mm(16")

50/60 10/12/15

28

CD-SBEG-02-05

450mm(18") 50/60 10/12/15

32

CD-SBEG-02-06

500mm(20")

50/60 10/12/15

36

CD-SBEG-02-07

550mm(22")

50/60 10/12/15

38

CD-SBEG-02-08

600mm(24")

50/60 10/12/15

42





The about specification & photo is for reference, other specification may be available as per demand.





Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
