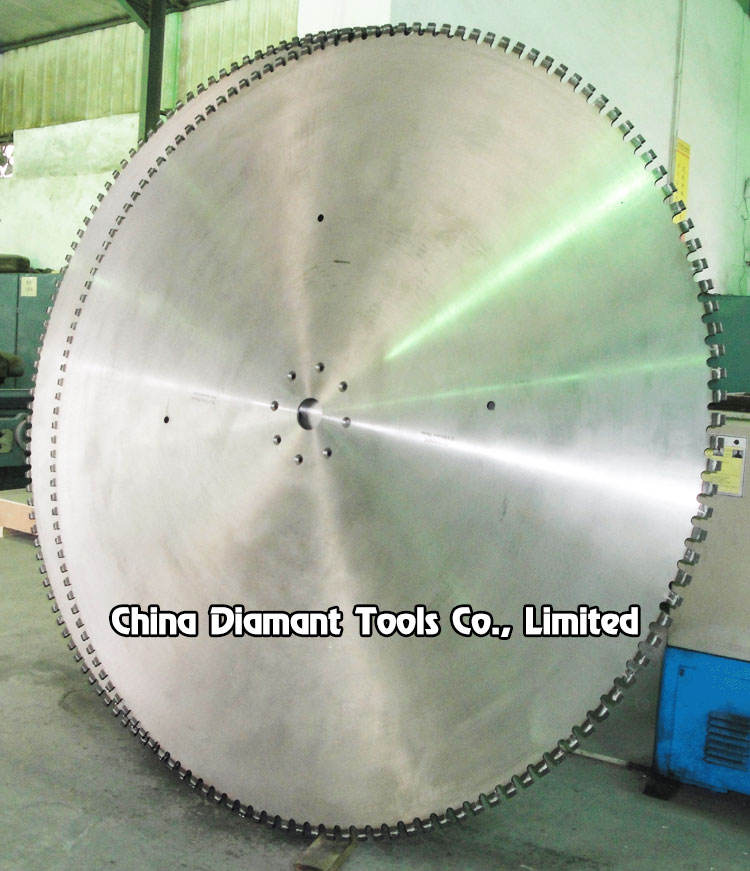

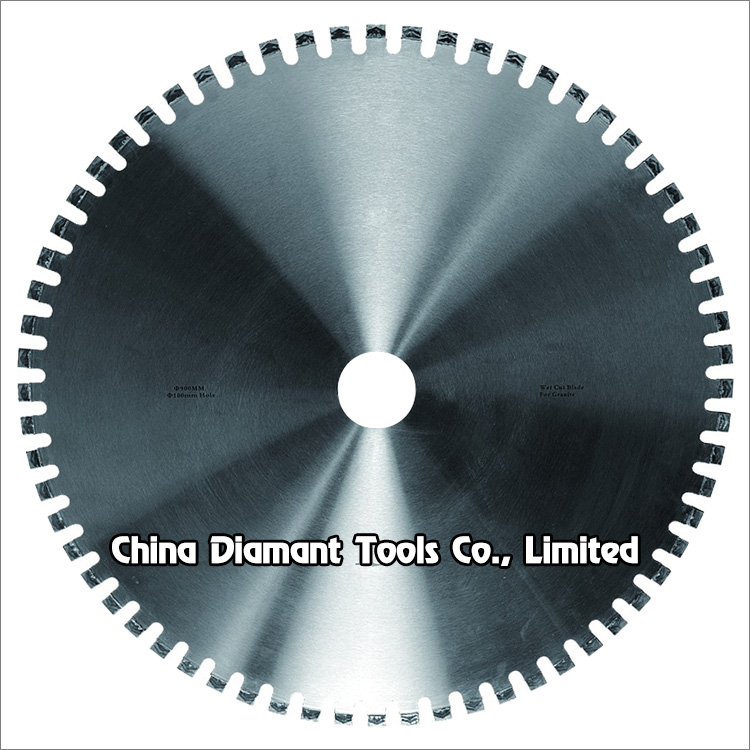

900mm-3500mm Diamond Circular Saw Blades for Granite Block Cutting



Single Blade



Diamond segmented circular saw blades for block cutting of granite, sandstone, slate, various hard stone with quartz, suitable for bridge block cutter, gantry block cutting machine or single arm stone cutting machines, cutting granite blocks to slabs or tiles (stripes).



Welding method: silver welded by high frequency welding machine.



Wet use only with sufficient water, fast & smooth cutting, long life, high ratio of performance to price.







Code No.

Diameter

(mm)

Segment Dimension

(LWH mm)

Steel Core  Thickness

Segment No.

Segment Structure
CD-DSB-GBC-01-0900

900

24x7.0/6.5x10/12/15/20

5.0mm

64

Multi-Layers

or

Sandwich



CD-DSB-GBC-01-1000

1000

24x7.0/6.5x10/12/15/20

5.0mm

70

CD-DSB-GBC-01-1100

1100

24x7.4/6.8x12/15/20

5.5mm

74

CD-DSB-GBC-01-1200

1200

24x7.5/7.0x12/15/20

5.5mm

80

CD-DSB-GBC-01-1300

1300

24x8.0/7.5x12/15/20

6.0mm

88

CD-DSB-GBC-01-1350

1350

24x8.4/7.7x12/15/20

6.0mm

88

CD-DSB-GBC-01-1400

1400

24x8.5/8.0x12/15/20

6.5mm

96

CD-DSB-GBC-01-1600

1600

24x9.0/8.7/8.4x12/15/20

6.5mm

104/108

CD-DSB-GBC-01-1700

1700

24x9.4/8.9/8.4x12/15/20

7.0mm

112

CD-DSB-GBC-01-1800

1800

24x9.5/9.0x12/15/20

7.0mm

120

CD-DSB-GBC-01-2000

2000

24x10.5/10/9.5x15/20

8.0mm

128

CD-DSB-GBC-01-2200

2200

24x11.5/11/10.5x15/20

8.5mm

132/136

CD-DSB-GBC-01-2500

2500

24/30x12/11.5/11x15/20/25/30

9.5mm

140

CD-DSB-GBC-01-2700

2700

24/30x12/11.5/11x15/20/25/30

9.5mm

140

CD-DSB-GBC-01-3000

3000

24/30x12.5/12/11.5x15/20/25/30

10.0mm

160

CD-DSB-GBC-01-3500

3500

24/30x13/12.5/12x15/20/25/30

10.0mm

180





The following are the different shapes design of diamond segments:





Taper Shape, Block Cutting



Taper << Shape, Block Cutting



Male&Female < Top, Block Cutting



Taper || Shape, Block Cutting

Taper W Top, Block Cutting

Taper W Top <<, Block Cutting





The above specifications is for reference, other specification may be available as per demand.









Remarks:



Diamond saw blade used for granite block cutting in diameter 900mm up to 3500mm is called granite block cutting saw blade, there is two type of granite block cutter, one is single blade and the other is multi cutter. In this title, we describe diamond saw blade for single blade granite block cutter.

Popular diameter in use are diameter 1200mm, 1600mm, 2000mm, 2500mm and 3000mm, cutting granite tiles or slabs from 45cm (1200mm blade) up to 135cm (3000mm blade) as per sizes needed from order or works. Most factories use non-silent or normal steel blank in their production considering the cost factor. Silent steel blank for bigger diameter blade is much more expensive and not so economic compared to bridge saw blades in smaller diameters and less cost.
