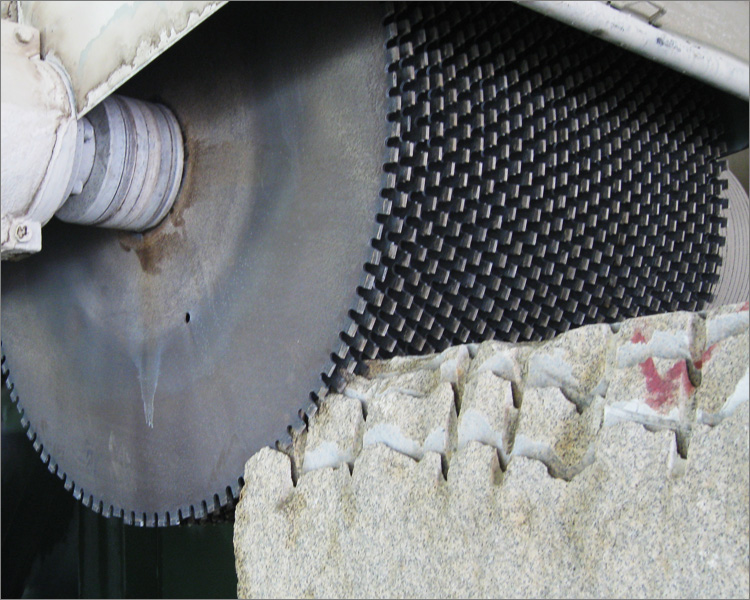

Diamond Circular Saw Multi-Blade for Granite Block Cutting



Diamond Multi-blades refers to 2-60pcs diamond circular saw blades used on multi-cutter machine for sawing granite block to slabs or strips, which is suitable for 4 column machines or even single arm machines. High efficiency, smoothness and low energy consumption. There are 3 types of multi disc block cutters for granite.

Multi cutter requests higher quality of diamond saw blades both in steel saw blank in vibration, balance and side jumping and also on diamond segments on more sharpness or cutting speed. So the segments for multi block cutter is with different formula or metal bond and diamond grade and density.











(A) Single Size



2-60pcs same diameter diamond circular saw blades per machine is suitable for 4 column  machine, such as 1200mm Multi-Blades, this is very popular in granite block cutting field.



The specification of all blades on the machine is same.



Diameter

Steel Thickness

Segment No.

Segment Height

800mm

4.50mm

46

12/13mm

900mm

5.15mm

64

12/13mm

1000mm

6.0/5.0mm

70

12/13mm

1100mm

6.0/5.0mm

74

12/13mm

1200mm

6.0/5.0mm

80

12/13mm

1300mm

6.15mm

88

12/13mm

1400mm

6.35mm

92

12/13mm

1500mm

6.65mm

100

12/13mm

1600mm

7.30mm

108

12/13/15mm

1800mm

8.00mm

118

12/13/15mm











(B) Two-Size



There are two size blades on the machine, each size 2-15pcs. The popular size is 940mm and 1600mm.



Diameter

Steel Thickness

Segment Size.

Segment Height

1600/950mm

5.0, 6.5, 7.2mm

24x6.5/6.0x13(15H)

13/15mm

24x8.4/7.6x13(15H)
24x9.2/8.4x13(15H)

2200/530mm

4.5, 5.0, 5.5, 6.5mm

24x6.4/5.6x13(15H)

13/15mm

24x7.0/6.2x13(15H)
24x7.4/6.6x13(15H)
24x8.4/7.6x13(15H)
2500/800mm 6.5, 7.2mm 24x8.4/7.6x13(15,20H) 13/15/20mm
24x9.2/8.4x13(15,20H)











(C) Multi-Size



2-15pcs different size blades per machine, diameters from 530-2500mm, steel core thickness 3.5mm to 5.5mm.



2pcs blades per machine:



640/1000mm

740/1200mm

850/1400mm

940/1600mm

950/1620mm

960/1600mm

980/1650mm

1040/1800mm

1140/2000mm

1250/2200mm



3pcs blades per machine:



680/1140/1600mm

730/1170/1650mm

750/1300/1800mm

850/1400/2000mm

940/1600/2200mm



4pcs blades per machine:



590/925/1250/1600mm

680/1140/1600/2000mm



6pcs blades per machine:



530/740/950/1140/1370/1600mm



7pcs blades per machine:



530/740/950/1140/1370/1600/1800mm



8pcs blades per machine:



530/740/950/1140/1370/1600/1800/2000mm



etc. ...



More specifications are available.









The following are the regular shapes of diamond segments for multi-blades:







CD-DSGBM-1

Normal Taper Shape

CD-DSGBM-2

<< Taper Shape







The regular height of diamond segments for multi block cutter are 13mm or 15mm. The most common height is 13mm, which is not too big in size and not to bring too much cutting impact to the saw blank, and it is quite succeed and popular in use.

With technology improvement, more and more granite block cutter are using 15mm height multi segments. Factory customers require 15mm heights to save cost in re-tipping and in the long run, and with steel blank quality improved step by step, people more and more know how in multi block cutter operation and maintenance, so now 15mm is quite popular in the market.
