Dry Cutting Saw Blades

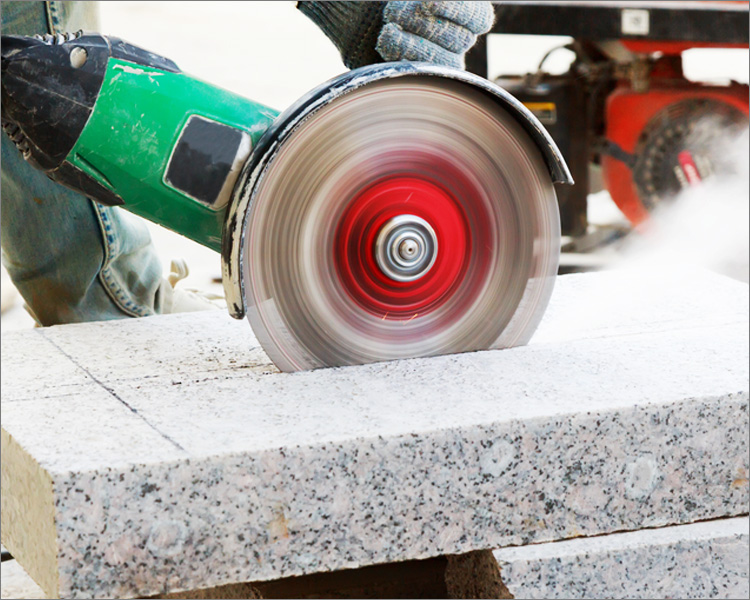

Dry Cutting Diamond Saw Blades



Hot sintered or laser welded dry cutting diamond saw blades for fast cutting various hard or abrasive materials such as granite, marble, sandstone, limestone, etc., some types also suitable for cutting concrete, asphalt, brick, ceramic and for general purpose.





Diameter

Segment Height (mm)

Bore (mm) Producing Tech.

105mm(4")

8/10mm

15.88mm(5/8")

20.00mm

22.23mm(7/8")

25.40mm(1")

M14(with flange)

or

As per demand

Hot Sintered

or

Laser Welded

115mm(4.5")

8/10mm

125mm(5")

8/10mm

150mm(6")

8/10mm

180mm(7")

8/10mm

200mm(8")

8/10mm

230mm(9") 8/10mm

250mm(10")

8/10mm

300mm(12")

10/12mm

350mm(14")

10/12mm

400mm(16")

10/12mm





Diamond Dry Cutting Saw Blades - Hot-press Sintered





CD-DCHS-01

Normal Flat Segments



CD-DCHS-02

Straight Turbo Segments



CD-DCHS-03

Diagonal Turbo Segments



CD-DCHS-04

Axe Shape Segments



CD-DCHS-05

Crown & Turbo Segments



CD-DCHS-06

T Shape Segments



CD-DCHS-07

Diagonal Turbo with Protection



CD-DCHS-08

Continuous Rim



CD-DCHS-09

Continuous Rim with J Slot



CD-DCHS-10

Narrow Turbo Continuous Rim



CD-DCHS-11

Wide Turbo Continuous Rim



CD-DCHS-12

Turbo Rim with Protective Teeth



CD-DCHS-13

Turbo Rim with Protective Teeth



CD-DCHS-14

Turbo Rim with Protective Teeth



CD-DCHS-15

Turbo Rim with Protective Teeth





CD-DCHS-16

Turbo Rim with Protective Teeth

CD-DCHS-17

Continuous & Fish Scale Rim







Diamond Dry Cutting Saw Blades - Laser Welded





CD-DCLW-01

Normal Segments



CD-DCLW-02

Straight Turbo Segments



CD-DCLW-03

Diagonal Turbo Segments



CD-DCLW-04

Diagonal Turbo with V Slot Segments

CD-DCLW-05

Matrix Segments

CD-DCLW-06

Matrix with << Groove Segments
