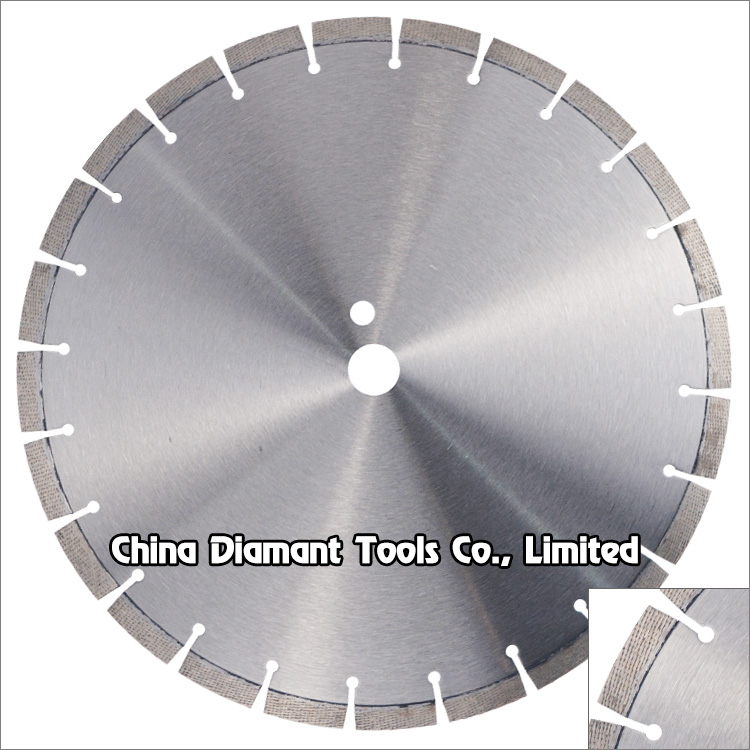

Diamond Dry Cutters(Dry Cutting Diamond Saw Blades) - Laser welded, Matrix Segments



Laser welded diamond dry cutters with matrix segments for fast dry cutting various hard, medium, soft stone such as granite, marble, sandstone, limestone, etc. without water or with less water.



Under same bond condition, the cutting speed and life of blades with diamond matrix segments are both minimum 20% more than other regular blades.



Also we can make the segments bond for cutting other materials such as concrete, asphalt, ceramic, bricks, etc. or the bond for general purpose.



Diameter: 4"(105mm)-18"(450mm), segment height: 10mm, 12mm, 15mm.



Welding method: Laser welded.



Dry or wet use, water coolant is benefit for longer cutting life.



Usually used on: angle grinders, table saws, high speed power saws, masonry saws, handheld saw machines.







Code No.

Diameter

(mm/inch)

Segment Size

(mm)

Segment No.

(pcs/set)

Bore Size Welding Method
CD-DCLW-05-01

105mm(4")

40x2.2x10

8

25.4mm

50mm

60mm

or

As per demand

Laser

CD-DCLW-05-02

115mm(4.5")

40x2.2x10

9

CD-DCLW-05-03

125mm(5")

40x2.2x10

10

CD-DCLW-05-04

150mm(6")

40x2.2x10

12

CD-DCLW-05-05

180mm(7")

40x2.4x10

14

CD-DCLW-05-06

200mm(8")

40x2.8x10

16

CD-DCLW-05-07

230mm(9")

40x2.8x10

18

CD-DCLW-05-08

250mm(10")

40x3.0x10/12

18

CD-DCLW-05-09

300mm(12")

40x3.0x10/12

21

CD-DCLW-05-10

350mm(14")

40x3.2x10/12/15

24

CD-DCLW-05-11

400mm(16")

40x3.6x10/12/15

28

CD-DCLW-05-12

450mm(18")

40x4.0x10/12/15

32





The about specifications & photos is for reference, other specification may be available as per demand.





Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
