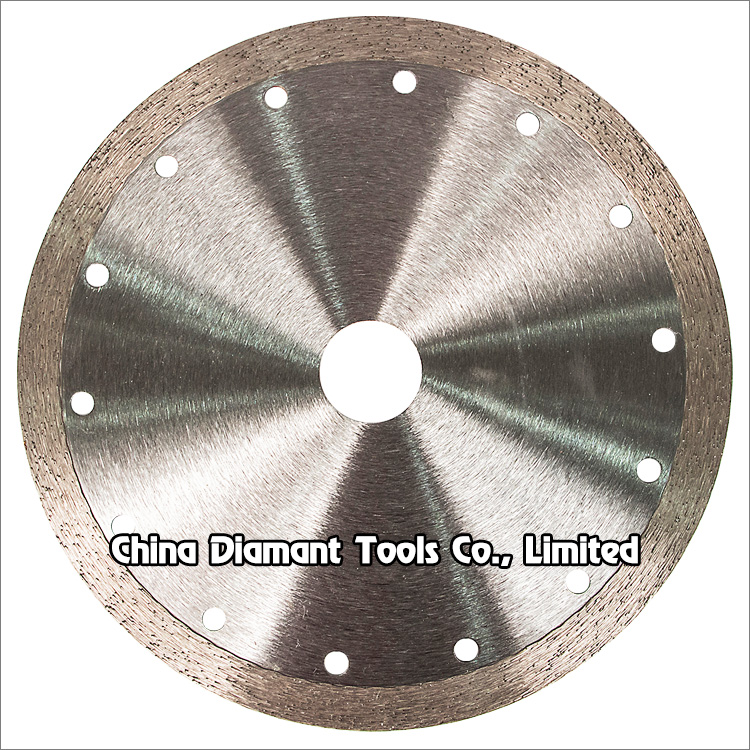

Dry Cutters - Hot Press Sintered, Continuous Rim Segments
|
Hot press sintered diamond saw blades with continuous rim segments for fast dry cutting
various hard, medium, soft stone such as granite, marble,
sandstone, limestone, etc. without water or with less water.
Also we can make the segments bond for general cutting of other materials such as concrete,
asphalt, ceramic, bricks, etc.. Diameter:
4"(105mm)-12"(300mm), segment height: 10mm.
Processing: hot-press sintered.
Dry or wet use, water coolant is benefit for longer
cutting life.
Usually used
on: angle grinders, table saws, handheld saw machines. |
|
 |
|
Code No. |
Diameter |
Segment Thickness |
Segment Height |
Bore (mm) |
Processing |
|
CD-DCHS-08-105 |
105mm(4") |
2.0mm |
10mm |
15.88mm(5/8")
20.00mm
22.23mm(7/8")
or
As per demand |
Hot-press sintered |
|
CD-DCHS-08-115 |
115mm(4.5") |
2.0mm |
10mm |
|
CD-DCHS-08-125 |
125mm(5") |
2.2mm |
10mm |
|
CD-DCHS-08-150 |
150mm(6") |
2.4mm |
10mm |
|
CD-DCHS-08-180 |
180mm(7") |
2.6mm |
10mm |
|
CD-DCHS-08-200 |
200mm(8") |
2.6mm |
10mm |
|
CD-DCHS-08-230 |
230mm(9") |
2.8mm |
10mm |
|
CD-DCHS-08-250 |
250mm(10") |
2.8mm |
10mm |
|
CD-DCHS-08-300 |
300mm(12") |
3.0mm |
10mm |
The about specifications & photos is for reference, other specification
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
