Diamond Saw Blades for Concrete Cutting

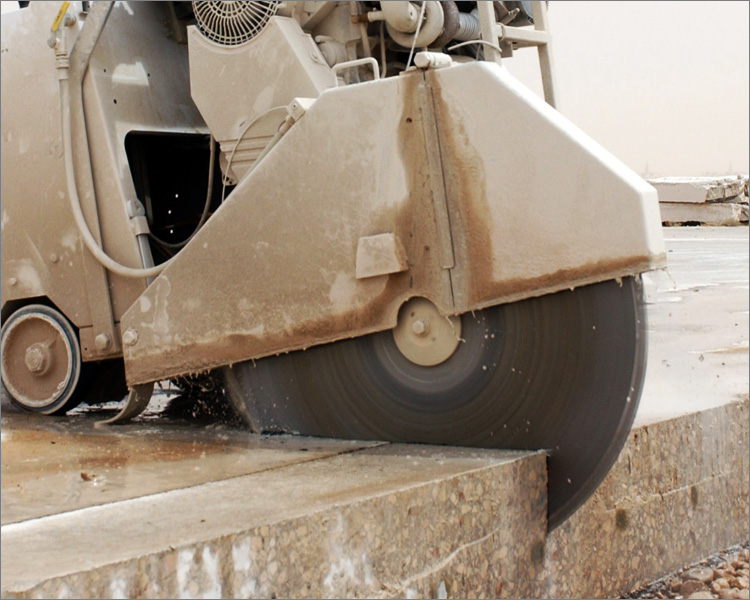

Concrete saw blades are used for cutting concrete, hard concrete, hard concrete with reinforced bar, block, brick, hard brick, pavers, clay pavers and field stones.



Our concrete cutting blades come laser welded, polished, sintered, jumbo segmented, u-gullets, key hole gullets, turbo or with a heavy duty core. Concrete diamond saw blades are intended to withstand hard use.



Our concrete saw blades are available to keep your concrete saw running smoothly through every application and use.



We have the following designs for concrete saw blades:





CD-SBC-01

Normal Flat Segments

CD-SBC-02

Straight Turbo Segments

CD-SBC-03

Spiral Turbo Segments





Diameter

(mm/inch)

Segment Size

(mm)

Segment No.

(pcs/set)

Bore Size

Welding Method

105mm(4")

40x2.2x10

8

20mm

22.23mm

25.4mm

50mm

60mm

or

As per demand

Laser Welding

115mm(4.5")

40x2.2x10

9
125mm(5")

40x2.2x10

10
150mm(6)

40x2.2x10

12
180mm(7)

40x2.4x10

14
200mm(8")

40x2.8x10

16
230mm(9")

40x2.8x10

18

250mm(10")

40x3.0x10

18

300mm(12")

40x3.0x10

21

350mm(14")

40x3.2x10

24

400mm(16")

40x3.6x10

28

450mm(18")

40x4.0x10

32

500mm(20")

40x4.2x10

36

600mm(24")

40x4.6x10

42

650mm(26")

40x4.6x10

46

700mm(28")

40x4.6x10

50

750mm(30")

40x4.8x10

54

800mm(32")

40x4.8x10

57

900mm(36")

40x4.8x10

52

1000mm(40")

40x5.2x10

58

1050mm(42")

40x5.2x10

60

1200mm(48")

40x5.2x10

70





The about specifications & photos is for reference, other specification may be available as per customer's demand.
