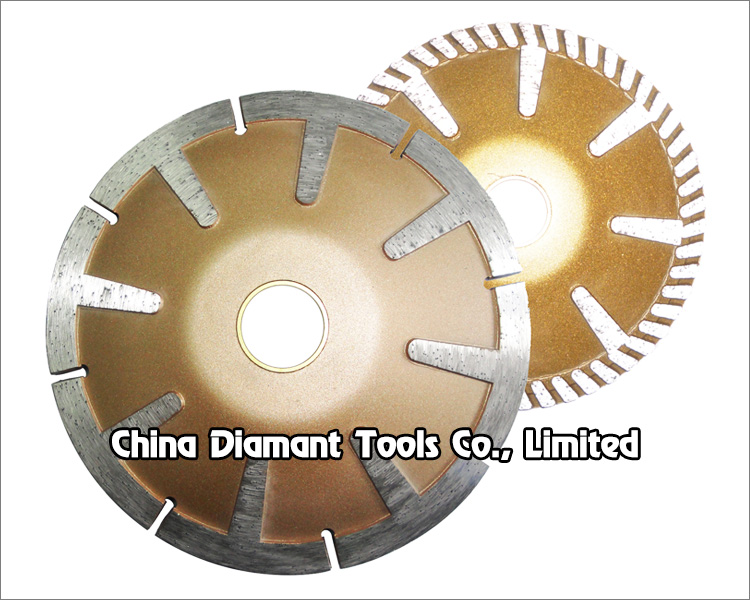

Concave Diamond Saw Blades



Concave diamond saw blades can be used in radius cutting, diameter from 4"(105mm) - 7"(180mm) for dry cutting circles or curved line on the slab, countertops, etc. The protection on the both in- and-out side provide faster cutting on various stone or granite, fast cutting and good life time.



1. Producing tech.: Hot sintered;

2. Outer diameter: 105mm, 115mm, 125mm, 150mm, 180mm;
3. Segment Height: 8mm;
4. Bore Size: 16mm, 20mm or 22.23mm;
5. Application: Nature stone like granite, marble. Engineered stone, quartz, etc;
6. Dry or wet use.







Diameter

Bore (mm)

Segment Type

Segment No.

Segment Height

105mm(4")

16mm

20mm

22.23mm(7/8")

T Shape



Continuous Rim with protecting teeth

8

8mm

115mm(4.5") 9

125mm(5")

9/10

150mm(6")

12

180mm(7")

14







CD-CSB-01

T Shape Segmented

CD-CSB-02

Turbo Continuous Rim







Our concave diamond saw blade is a good choice for your cutting sinkholes or other inside arcs. The concave blades offer fast and reliable way to cut out holes in natural stone slabs. The blades use soft bond for fast aggressive cuts on various stones including hard granite. Designed with a natural arc and featuring diamond exposure, these concave blades can be run on most electric grinders and will cut through granite slabs up to 3 centimeters thick with ease. They have core protection on the inside and the outside of the blade to help reduce heat build up and to prevent binding. They will also give you a smoother finish.
