Diamond

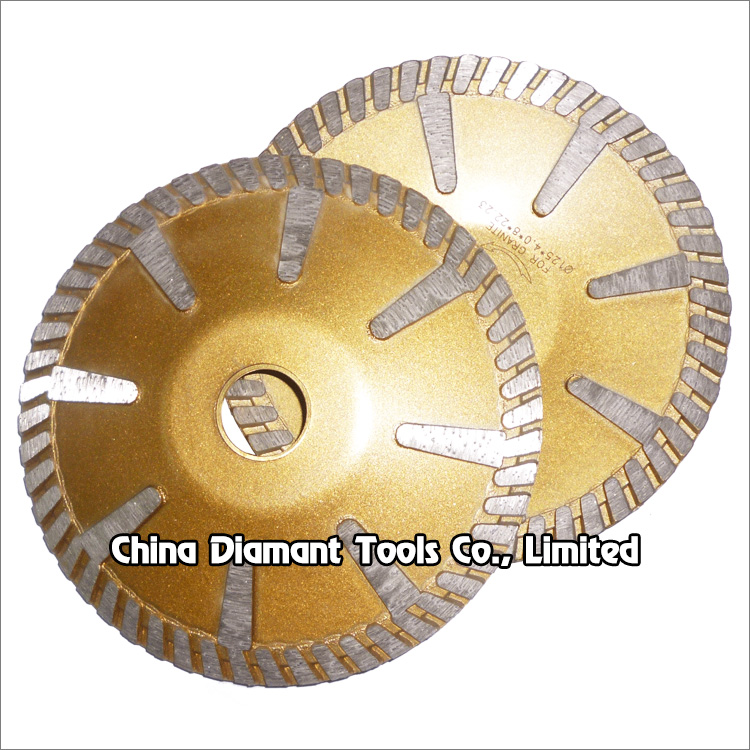

Concave Saw Blades - Continuous Turbo Rim with Protecting Teeth
|
Diamond
concave saw blades continuous turbo rim with protecting teeth can be used in radius cutting, diameter from 4"(105mm) -
7"(180mm) for dry cutting circles or curved line on the slab,
countertops, etc. The protection on the both in- and-out side provide
faster cutting on various stone or granite, fast cutting and good life
time.
1. Producing tech.: hot-press sintered;
2. Outer
diameter: 105mm, 115mm, 125mm, 150mm, 180mm;
3. Segment Height: 8mm;
4. Bore Size: 16mm, 20mm or 22.23mm;
5. Application: nature stone(granite/marble), engineered stone, quartz, etc;
6. Dry or wet use, water coolant is benefit for longer
cutting life.
|
|
 |
|
Code No. |
Diameter |
Bore (mm) |
Segment
Type |
Segment Height |
|
CD-CSB-02-01 |
105mm(4") |
16mm
20mm
22.23mm(7/8") |
Continuous turbo rim
with
protective teeth
|
8mm |
|
CD-CSB-02-02 |
115mm(4.5") |
|
CD-CSB-02-03 |
125mm(5") |
|
CD-CSB-02-04 |
150mm(6") |
|
CD-CSB-02-05 |
180mm(7") |
Our concave blade
is a good choice for your cutting sinkholes or other inside
arcs. The blades use soft bond for fast aggressive cuts on
various stones including hard granite. They can be run on
most electric grinders and will cut through either 2cm or
3cm stone. They have core protection on the inside and the
outside of the blade to help reduce heat build up and to
prevent binding. They will also give you a smoother finish.
The about specifications & photos is for reference, other specification
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
