Ceramic
Cutting Saw Blades
 Continuous Rim
Continuous Rim & Fishhook Slot
Super Thin & Wide Turbo Rim
Super Thin & Narrow Turbo Rim
Continuous & Fish Scale Rim
|
|
|

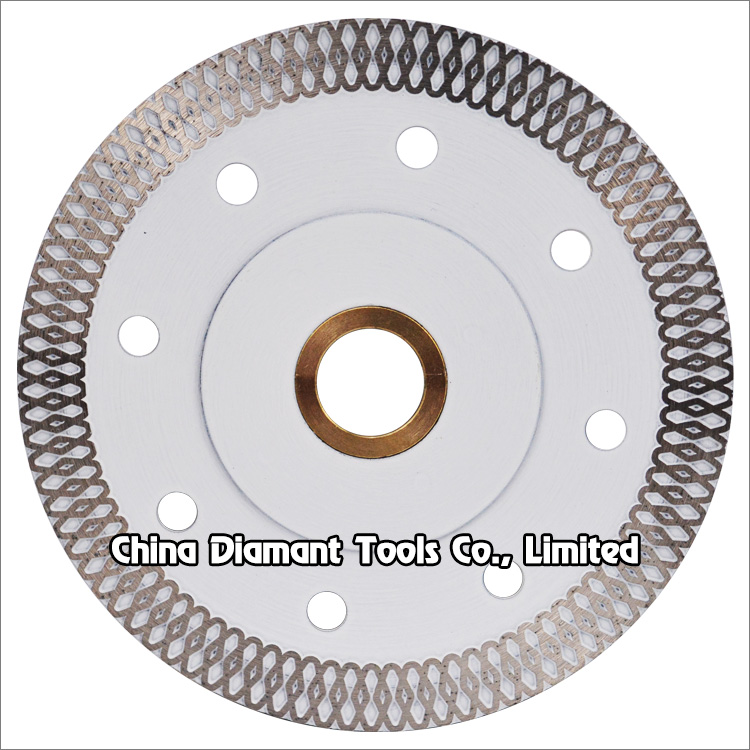

Diamond Saw Blades for
Ceramic Porcelain Cutting - Continuous & Fish Scale Rim
|
Diamond saw blades
with continuous & fish scale rim segments for cutting ceramic,
porcelain, tile, masonry, marble, and soft stone, fast cutting
speed with less chips.
Segment
height: 10mm.
Steel core type:
thicker of central part.
Hot-press sintered.
Wet or dry use, water
coolant is benefit for longer cutting life.
The blades are used
with angle grinders, brick saws, circular saws, concrete saws,
portable saws, radial arm saws and tile saws.
|
|
 |
|
Code No. |
Diameter |
Bore Size |
Segment Thickness |
Segment Height |
|
CD-CCSB-05-01 |
105mm(4") |
20/22.23/25.4mm |
1.4mm |
10mm |
|
CD-CCSB-05-02 |
110mm(4.5") |
20/22.23/25.4mm |
1.4mm |
10mm |
|
CD-CCSB-05-03 |
115mm(4-1/2") |
20/22.23/25.4mm |
1.4mm |
10mm |
|
CD-CCSB-05-04 |
125mm(5") |
20/22.23/25.4mm |
1.4mm |
10mm |
|
CD-CCSB-05-05 |
150mm(6") |
20/22.23/25.4mm |
1.8mm |
10mm |
|
CD-CCSB-05-06 |
180mm(7") |
20/22.23/25.4mm |
1.8mm |
10mm |
|
CD-CCSB-05-07 |
200mm(8") |
20/22.23/25.4mm |
1.8mm |
10mm |
|
CD-CCSB-05-08 |
230mm(9") |
20/22.23/25.4mm |
2.0mm |
10mm |
The about specification & photo is for reference, other specification
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
