Diamond Saw Blades for Wall Cutting

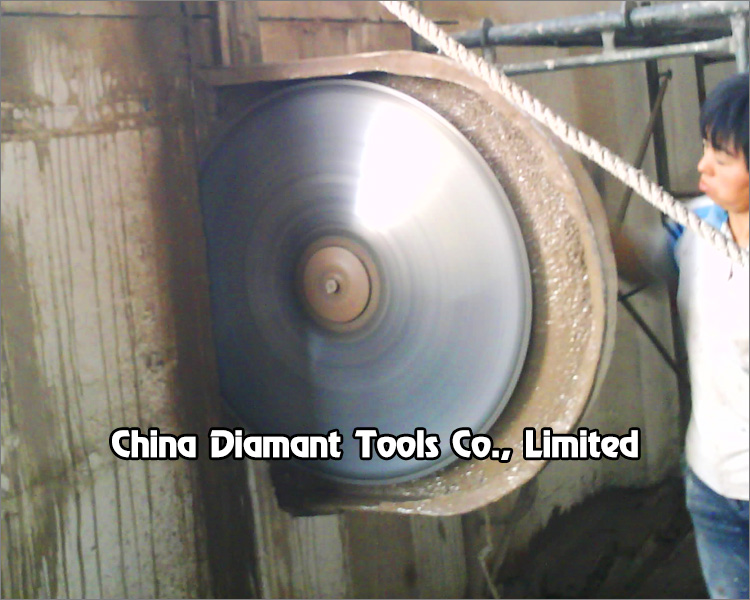

A wide spectrum of wall saw blades, matched to different machine systems, drive powers and materials. Silver brazed/laser welded, used to cut openings in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition.



Diameter:

450mm(18"), 500mm(20"), 600mm(24"), 650mm(26"), 700mm(28"), 750mm(30"), 800mm(32"), 900mm(36"), 1000mm(40"), 1050mm(42"), 1100mm(44"), 1200mm(48")

Bore Size:

25.4mm, 35mm, 50mm, 60mm, may with extra holes

Segment Width: 40mm

Segment Width:

4.6mm, 4.8mm

Segment Height:

10mm or 12mm

Segment Type: With "V" slot or without
Welding Type: Laser welding(450mm-800mm) or silver welding



Detailed specifications are:



Diameter

Segment Size

(L x W x H mm)

Bore Steel Core Thickness Welding Type

450mm(18")

40x4.6x10/12mm

25.4mm

35mm

50mm

60mm

3.5mm

Silver Welded

or

Laser Welded

500mm(20")

40x4.6x10/12mm

600mm(24")

40x4.6x10/12mm

650mm(26")

40x4.6x10/12mm

700mm(28")

40x4.6x10/12mm

750mm(30")

40x4.6x10/12mm

800mm(32")

40x4.6x10/12mm

900mm(36")

40x4.6x10/12mm

Silver Welded

1000mm(40")

40x4.6x10/12mm

1050mm(42")

40x4.6x10/12mm

1100mm(44")

40x4.6x10/12mm

1200mm(48")

40x4.6x10/12mm



The above specification & photos is only for reference, other specification or design may be available as per customer's demand.
