Diamond Saw Blades for General Purpose Cutting (Universal Blades)

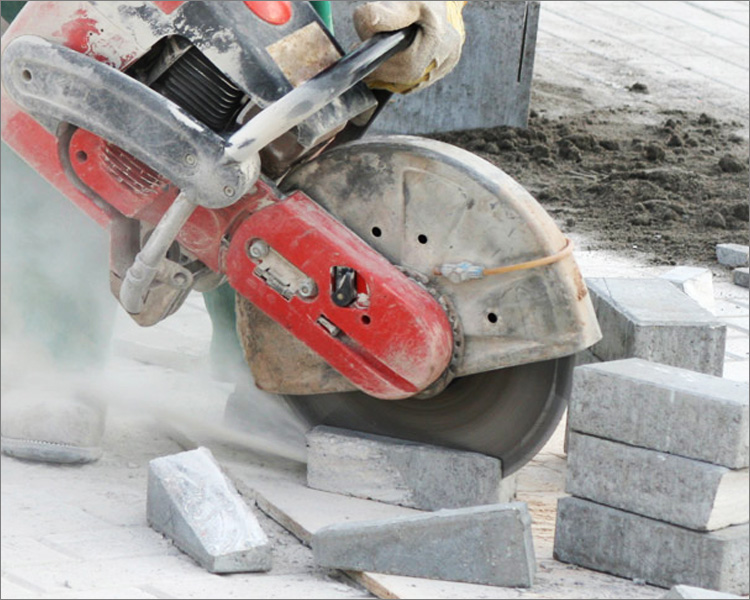

General purpose diamond saw blades with normal flat segments for fast cutting various material such as Concrete, asphalt, brick, block, masonry, granite, marble and other materials. Suitable for walk behind saw, table saw, and handheld saw machines.



Laser welded, dry or wet use!



Diameter:

105mm(4"), 115mm(4.5"), 125mm(5"), 150mm(6"), 180mm(7"), 200mm(8"), 230mm(9"), 250mm(10"), 300mm(12"), 350mm(14"), 400mm(16"), 450mm(18"), 500mm(20"), 600mm(24")

Bore:

25.4mm, 50mm, 60mm

Segment Height:

10mm



Detailed specifications are:



Code No.

Diameter

(mm/inch)

Segment Size

(mm)

Segment No.

(pcs/set)

Bore Size
CD-SBGP-01-01

105mm(4")

40x2.2x10

8

25.4mm

 50mm

60mm

CD-SBGP-01-02

115mm(4.5")

40x2.2x10

9

CD-SBGP-01-03

125mm(5")

40x2.2x10

10

CD-SBGP-01-04

150mm(6)

40x2.2x10

12

CD-SBGP-01-05

180mm(7)

40x2.4x10

14

CD-SBGP-01-06

200mm(8")

40x2.8x10

16

CD-SBGP-01-07

230mm(9")

40x2.8x10

18

CD-SBGP-01-08

250mm(10")

40x3.0x10

18

CD-SBGP-01-09

300mm(12")

40x3.0x10

21

CD-SBGP-01-10

350mm(14")

40x3.2x10

24

CD-SBGP-01-11

400mm(16")

40x3.6x10

28

CD-SBGP-01-12

450mm(18")

40x4.0x10

32

CD-SBGP-01-13

500mm(20")

40x4.2x10

36

CD-SBGP-01-14

600mm(24")

40x4.6x10

42



The above specification & photos is only for reference, other specification or design may be available as per customer's demand.
