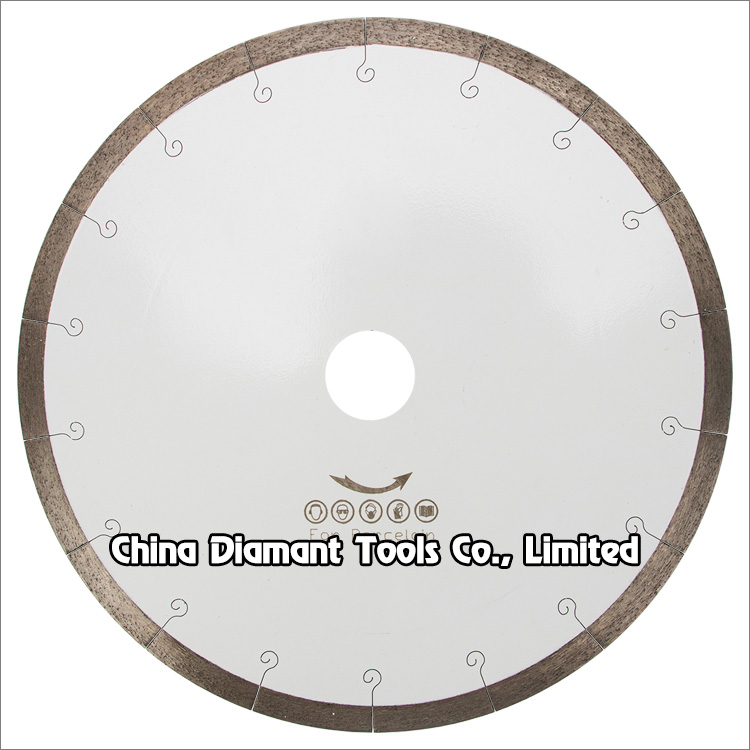

Diamond Saw Blades for Ceramic / Porcelain Cutting



 - Continuous Rim with Laser Cut "J" Slot



Continuous rim type diamond saw blades with laser cut 'J" slot for cutting various Ceramic & Porcelain, fast cutting speed with less chips.



Hot sintered and "J" slot laser cut.

Single Blade or Multi-Blades Cutting.

Wet or Dry Use.



Diameter:

105mm, 115mm, 125mm, 150mm, 180mm, 200mm, 230mm, 250mm, 300mm

Bore:

22.23mm, 25.4mm, 30mm, 50mm, 60mm

Steel Core Type:

Continuous rim with laser cut "J" slot

Segment Width: 1.2mm, 2.0mm, 2.8mm, 3.0mm

Segment Height:

10mm



Detailed specifications are:



Code No.

Diameter

Hole

(mm)

Segment Thickness

Segment Height

Slot No.

CD-CCSB-01-J-01 105mm(4") 20/22.23/25.4 1.4mm 10mm 6
CD-CCSB-01-J-02 115mm(4-1/2") 20/22.23/25.4 1.4mm 10mm 8
CD-CCSB-01-J-03

125mm(5")

20/22.23/25.4

1.4mm 10mm 10
CD-CCSB-01-J-04

150mm(6")

20/22.23/25.4

1.8mm 10mm 12
CD-CCSB-01-J-05 180mm(7") 20/22.23/25.4 1.8mm 10mm 14
CD-CCSB-01-J-06

200mm(8")

20/22.23/25.4

1.8mm 10mm 14
CD-CCSB-01-J-07

230mm(9")

20/22.23/25.4

2.0mm 10mm 18
CD-CCSB-01-J-08

250mm(10")

25.4/30/50/60 2.0mm 10mm 18
CD-CCSB-01-J-09

300mm(12")

25.4/30/50/60 2.2mm 10mm 21
