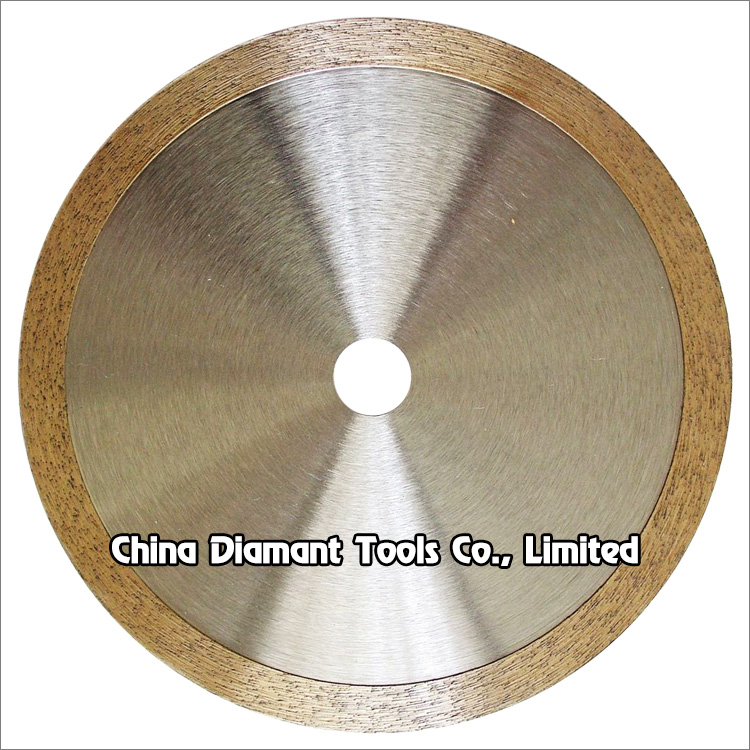

Diamond Saw Blades for Ceramic / Porcelain Cutting



 - Continuous Rim



Continuous rim type diamond saw blades for cutting various Ceramic & Porcelain, fast cutting speed with less chip.



Hot sintered.

Single Blade or Multi-Blades Cutting.

Wet or Dry Use.



Diameter:

105mm, 115mm, 125mm, 150mm, 180mm, 200mm, 230mm, 250mm, 300mm

Bore:

22.23mm, 25.4mm, 30mm, 50mm, 60mm

Steel Core Type:

Continuous rim

Segment Width: 1.2mm, 2.0mm, 2.8mm, 3.0mm

Segment Height:

10mm



Detailed specifications are:



Code No.

Diameter

Hole

(mm)

Segment Thickness

Segment Height

CD-CCSB-01-01

105mm(4")

20/22.23/25.4

1.4mm

10mm

CD-CCSB-01-02

115mm(4-1/2")

20/22.23/25.4

1.4mm

10mm

CD-CCSB-01-03

125mm(5")

20/22.23/25.4

1.4mm

10mm

CD-CCSB-01-04

150mm(6")

20/22.23/25.4

1.8mm

10mm

CD-CCSB-01-05

180mm(7")

20/22.23/25.4

1.8mm

10mm

CD-CCSB-01-06

200mm(8")

20/22.23/25.4

1.8mm

10mm

CD-CCSB-01-07

230mm(9")

20/22.23/25.4

2.0mm

10mm

CD-CCSB-01-08

250mm(10")

25.4/30/50/60

2.0mm

10mm

CD-CCSB-01-09

300mm(12")

25.4/30/50/60

2.2mm

10mm
